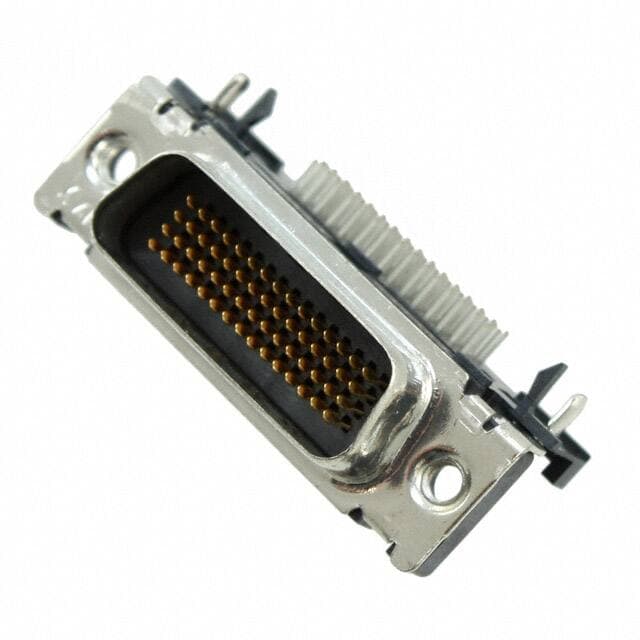

MOLEX 0015922250

Manufacturer No:

0015922250

Manufacturer:

Package:

Description:

Low Force Helix (LFH) 70929 Series D-Type, Board to Board, Matrix Plug, Male Pins 60-Position Signal Solder 0.050 Pitch x 0.050 Row to Row Panel Mount, Through Hole, Right Angle Phosphor Bronze Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

0015922250 information

MOLEX 0015922250 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 0015922250.

Type
Parameter

Contact Material
Phosphor Bronze

Mounting Type
Panel Mount, Through Hole, Right Angle

Dielectric Material
Liquid Crystal Polymer (LCP), Glass Filled

Shell Material, Finish
Steel, Tin Plated

Operating Temperature
-20°C~80°C

Packaging
Tube

Series
Low Force Helix (LFH) 70929

JESD-609 Code
e3

Feature
Board Lock, Grounding Indents, Shielded

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
60

Color
Black

Number of Rows
4

Voltage - Rated
40V

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Signal

Option
GENERAL PURPOSE

Current Rating (Amps)
1A

Total Number of Contacts
60

Contact Finish
Gold

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Empty Shell
NO

Flange Feature
Housing/Shell (M3)

Connector Style
D-Type, Board to Board, Matrix

Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row

Backset Spacing
0.322 (8.18mm)

Contact Finish Thickness
30.0?in 0.76?m

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MOLEX 0015922250.

Datasheets:

molex-0015922250-datasheets-1819.pdf

0015922250 Overview

The packaging contains Plug, Male Pins.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Low Force Helix (LFH) 70929 Series.There are a number of advantages to its Board Lock, Grounding Indents, Shielded feature.As a result, the device runs at -20°C~80°C Operating Temperature.
