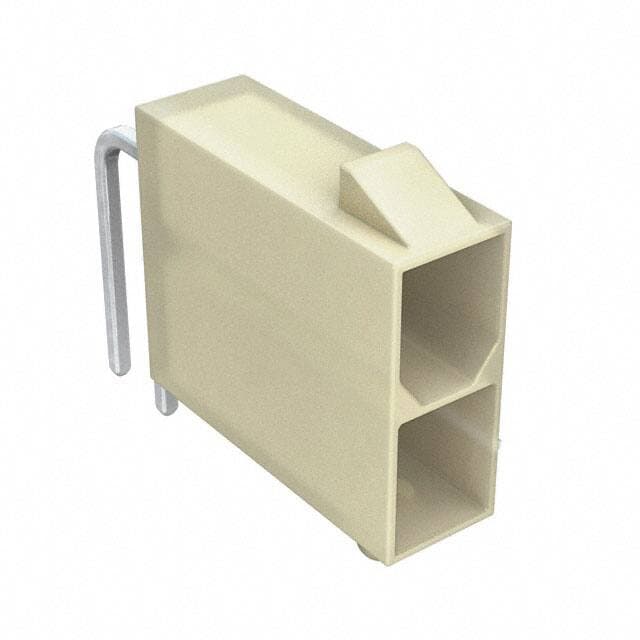

MOLEX 0039301020

Manufacturer No:

0039301020

Manufacturer:

MOLEX

Package:

LOW HALOGEN, ROHS AND REACH COMPLIANT

Description:

Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

0039301020 information

MOLEX 0039301020 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 0039301020.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
MOLEX LLC

Package Description
LOW HALOGEN, ROHS AND REACH COMPLIANT

Reach Compliance Code
compliant

Samacsys Manufacturer
Molex

Additional Feature
POLARIZED, SHROUDED

Connector Type
RECTANGULAR POWER CONNECTOR

Contact Finish Mating
NOT SPECIFIED

Contact Finish Termination
MATTE TIN OVER NICKEL

Contact Gender
MALE

Contact Material
BRASS

DIN Conformance
NO

Empty Shell
NO

Filter Feature
NO

IEC Conformance
NO

Insulator Material
POLYAMIDE

JESD-609 Code
e3

MIL Conformance
NO

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts
NO

Mounting Type
BOARD

Option
GENERAL PURPOSE

Total Number of Contacts
2

UL Flammability Code
94V-2

Download datasheets and manufacturer documentation for MOLEX 0039301020.

Datasheets:

MOLE-S-A0010936035-1.pdf

0039301020 Overview

This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Mini-Fit Jr 5569 Series.Furthermore, there are other features such as POLARIZED, SHROUDED, to name a few.There is the possibility of using the device for General Purpose, Industrial, Telecommunications.In many ways, Board Lock makes it more powerful.

0039301020 Features

Mini-Fit Jr 5569 series

0039301020 Applications

There are a lot of Molex
0039301020 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
