Manufacturer No:

09670094704

Manufacturer:

HARTING

Package:

Description:

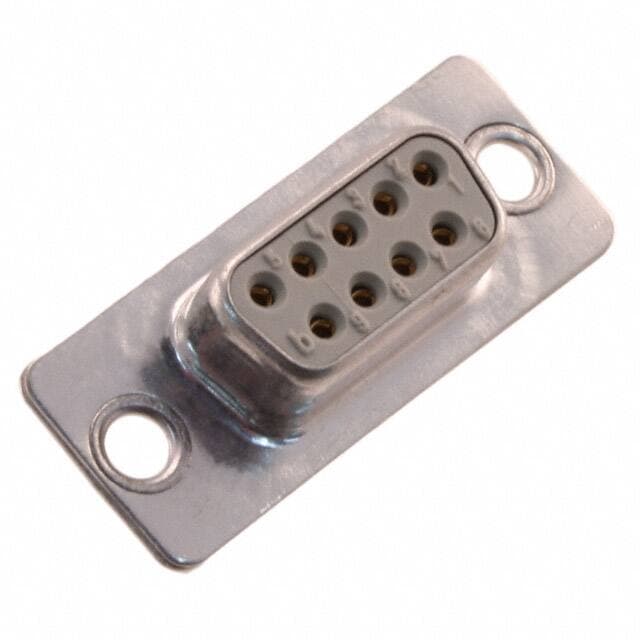

D-Sub Receptacle, Female Sockets Receptacle Signal Solder Cup 1 DE E Free Hanging (In-Line) Copper Alloy Steel

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09670094704 information

HARTING 09670094704 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09670094704.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Free Hanging, PCB, Panel
  • Mounting Type
  • Free Hanging (In-Line)
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Housing Material
  • Polybutylene
  • Body Material
  • Metal, Steel
  • Shell Material, Finish
  • Steel
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 9
  • Termination
  • Solder Cup
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Subcategory
  • D Type Connectors
  • Voltage - Rated DC
  • 125V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Contact Type
  • Signal
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 7.5A
  • Pitch
  • 2.74mm
  • Total Number of Contacts
  • 9
  • Orientation
  • Straight
  • Depth
  • 17mm
  • Current Rating
  • 7A
  • Shell Finish
  • TIN
  • Reference Standard
  • UL
  • Empty Shell
  • NO
  • Working Voltage
  • 125V
  • Contact Resistance
  • 10mOhm
  • Wire Gauge
  • 20 AWG
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Body/Shell Style
  • PLUG
  • Connector Style
  • D-Sub
  • Number of Ports
  • 1
  • Body Plating
  • Tin
  • Insertion Force-Max
  • 3.336 N
  • Withdrawl Force-Min
  • 3.336 N
  • Contact Form
  • Machined

Download datasheets and manufacturer documentation for HARTING 09670094704.

Datasheets:

ConflictMineralStatement:

09670094704 Overview


Packaging is Receptacle, Female Sockets.This device has a Free Hanging (In-Line) mounting type.An orange Tray case is used to package the product.A variety of tasks can be performed using its 1 ports.There is a mounting hole at Free Hanging, PCB, Panel.A chip with 9 terminations can be found.Devices operate at -40°C~85°C operating temperatures.
