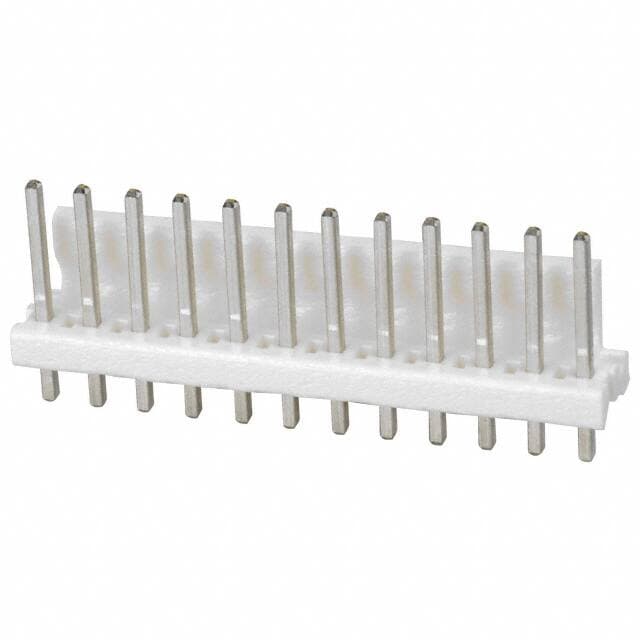

TE Connectivity 1-644752-2
TE Connectivity 1-644752-2

TE Connectivity 1-644752-2

Manufacturer No:

1-644752-2

Manufacturer:

TE Connectivity

Package:

Description:

MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled 12-Position Board to Cable/Wire 0.425 10.80mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-644752-2 information

TE Connectivity 1-644752-2 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-644752-2.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 17 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Thermoplastic, Glass Filled
  • Housing Material
  • Polyester
  • PCB Mounting Orientation
  • Vertical
  • Underplate Material
  • Nickel
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • MTA-156
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 12
  • Max Operating Temperature
  • 221°C
  • Min Operating Temperature
  • -67°C
  • Color
  • Natural
  • Applications
  • General Purpose, Industrial
  • Gender
  • Male
  • Voltage - Rated
  • 600VAC
  • Fastening Type
  • Friction Lock
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • Varies by WireGAuge
  • Pitch
  • 3.96mm
  • Orientation
  • Vertical
  • Depth
  • 7.62mm
  • Insulation Height
  • 0.425 10.80mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 7A
  • Pitch - Mating
  • 0.156 3.96mm
  • Insulation Color
  • Natural
  • Voltage - Rated AC
  • 600V
  • Approval Agency
  • CSA
  • Contact Length - Post
  • 0.175 4.45mm
  • Shrouding
  • Shrouded - 1 Wall
  • Number of Contacts
  • 12
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.400 10.16mm
  • Contact Gender
  • Male

Download datasheets and manufacturer documentation for TE Connectivity 1-644752-2.

Datasheets:

1-644752-2 Overview


The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number MTA-156 belongs to the MTA-156 Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, there are other possible applications for the device.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.

1-644752-2 Features


MTA-156 series


1-644752-2 Applications


There are a lot of TE Connectivity AMP Connectors
1-644752-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
