TE Connectivity 1-770974-0

Manufacturer No:

1-770974-0

Manufacturer:

Package:

Description:

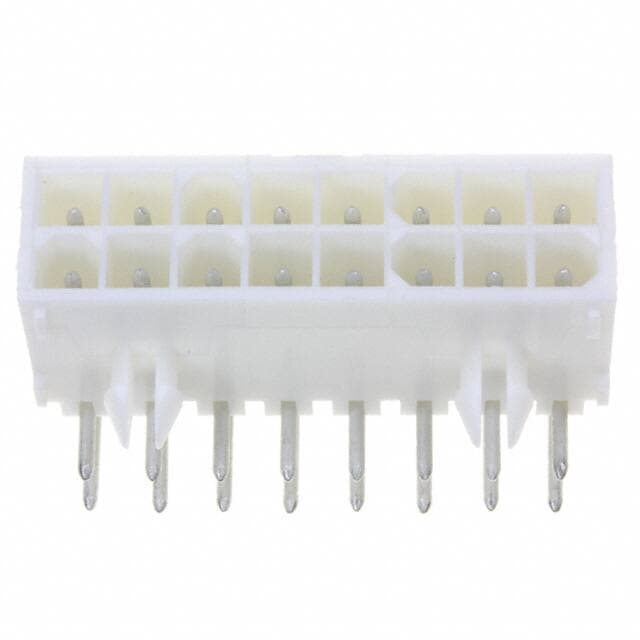

Mini-Universal MATE-N-LOK Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon Board to Cable/Wire 0.386 9.80mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-770974-0 information

TE Connectivity 1-770974-0 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-770974-0.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
4 Weeks

Contact Material
Brass

Contact Plating
Tin, Gold

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Circular

Insulation Material
Polyamide (PA), Nylon

Shell Material
Polyamide

Housing Material
Nylon

PCB Mounting Orientation
Right Angle

Operating Temperature
-20°C~85°C

Packaging
Bulk

Series
Mini-Universal MATE-N-LOK

Published
2008

JESD-609 Code
e3

Feature
Board Lock

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Termination
Solder

Connector Type
Header

Applications
General Purpose

Voltage - Rated
600VAC

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Current Rating (Amps)
Varies by WireGAuge

Orientation
Right Angle

Insulation Height
0.386 9.80mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
9.5A

Pitch - Mating
0.163 4.14mm

Insulation Color
White

Approval Agency
CSA

Row Spacing - Mating
0.163 (4.14mm)

Contact Length - Post
0.145 3.68mm

Shrouding
Shrouded - 4 Wall

Lead Pitch
4.14mm

Contact Gender
Male

Download datasheets and manufacturer documentation for TE Connectivity 1-770974-0.

Datasheets:

eng_cs_82181_softshell_high_density_0508.pdf

1-770974-0 Overview

It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the Mini-Universal MATE-N-LOK Series of products.It features 1 ports for managing a variety of tasks.General Purpose is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The chip has 16 terminations.This memory's operating supply voltage is 600V.The device runs in -20°C~85°C Operating Temperature.
