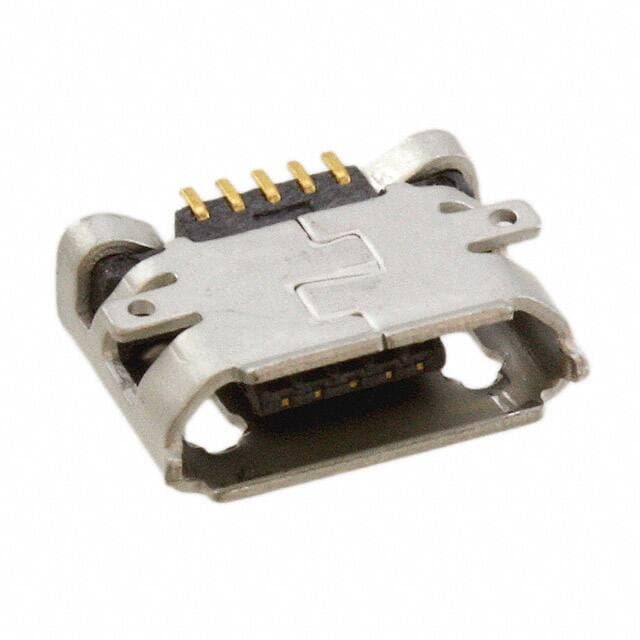

Amphenol 10118192-0001LF

Manufacturer No:

10118192-0001LF

Manufacturer:

Amphenol

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10118192-0001LF information

Amphenol 10118192-0001LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10118192-0001LF.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Plating
Gold

Mount
Horizontal, Surface Mount

Mounting Type
Surface Mount, Right Angle

Mounting Feature
Flange, Horizontal

Number of Pins
5

Housing Material
Polymer

Shell/Shielding Material
Steel, Stainless

Operating Temperature
-30°C~80°C

Packaging
Cut Tape (CT)

Published
2011

Feature
Solder Retention

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Termination
Solder

Connector Type
USB - micro B

Max Operating Temperature
80°C

Min Operating Temperature
-30°C

Color
Black

Gender
Receptacle

Voltage - Rated
100VAC

Current Rating (Amps)
1.8A per Contact

Pitch
650?m

Shielding
Shielded

Depth
5.57mm

Current Rating
1.8A

Insulation Color
Black

Contact Finish
Gold

Number of Contacts
5

Insulation Resistance
1GOhm

Max Voltage Rating (AC)
100V

Number of Ports
1

Mating Cycles
10000

Specifications
USB 2.0

USB
USB 2.0

Length
7.86mm

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Amphenol 10118192-0001LF.

The ICC USB, DVI, HDMI Connectors 10118192-0001LF from Amphenol are designed to provide reliable and secure connections for USB, DVI, and HDMI devices. This connector features a Micro USB Type B receptacle with five ways and a right angle surface mount. It is compliant with USB 2.0 standards and is designed to provide a reliable connection for data transfer and power delivery. The connector is constructed from high-quality materials and is designed to withstand harsh environments. It is also RoHS compliant and UL listed for safety and reliability. This connector is ideal for a variety of applications, including consumer electronics, automotive, and industrial applications.
