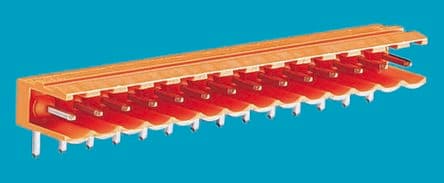

Weidmüller 1146850000
Weidmüller 1146850000

Weidmüller 1146850000

Manufacturer No:

1146850000

Manufacturer:

Weidmüller

Package:

Description:

Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1146850000 information

Weidmüller 1146850000 technical specifications, attributes, parameters and parts with similar specifications to Weidmüller 1146850000.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Insulation Material
  • Nylon
  • Housing Material
  • Polyamide (PA), Nylon, Glass Filled
  • Operating Temperature
  • -50°C~100°C
  • Packaging
  • Bulk
  • Series
  • Omnimate SL
  • Published
  • 2011
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Type
  • Header, Male Pins, Shrouded (2 Side)
  • Number of Positions
  • 8
  • Color
  • Orange
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 300V
  • Additional Feature
  • STANDARD: UL 94V-0, PA GF
  • Pitch
  • 0.200 5.08mm
  • Insulation Height
  • 0.335 8.51mm
  • Current Rating
  • 24A
  • Termination Style
  • Solder
  • Contact Tail Length
  • 0.126 3.20mm
  • Number of Levels
  • 1
  • Contact Mating Finish
  • Tin
  • Number of Decks
  • 1
  • Current - UL
  • 18.5A
  • Voltage - IEC
  • 400V
  • Number of Ways
  • 8
  • Safety Approval
  • CSA; CUL; EAC; IEC; KEMA; UL
  • Header Orientation
  • 90°, Right Angle
  • Hole Diameter
  • 1.3 mm
  • Fastening Method
  • CONNECTOR
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for Weidmüller 1146850000.

Datasheets:

1146850000 Overview


The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Omnimate SL Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STANDARD: UL 94V-0, PA GF, to name a few.Through Hole represents the mounting point for the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (2 Side) products, this part also offers a wide range of benefits.
