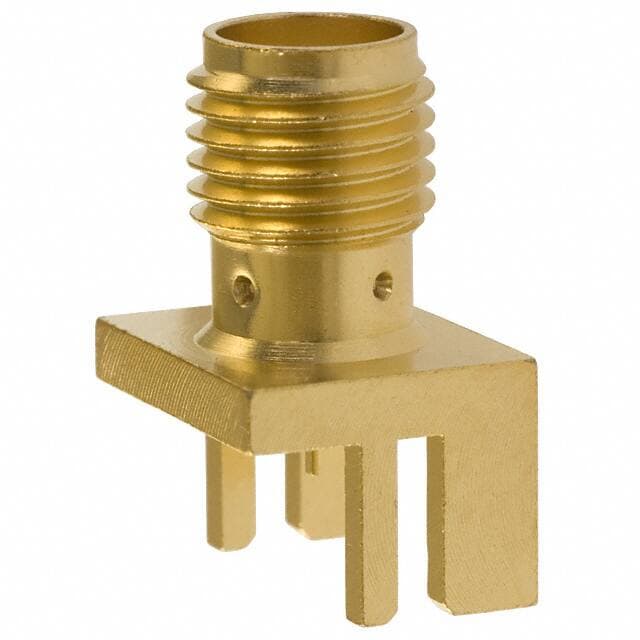

Cinch 142-0701-851
Cinch 142-0701-851

Cinch 142-0701-851

Manufacturer No:

142-0701-851

Manufacturer:

Cinch

Package:

Description:

Jack, Female Socket Threaded 50Ohm Tray SMA Solder Tab 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

142-0701-851 information

Cinch 142-0701-851 technical specifications, attributes, parameters and parts with similar specifications to Cinch 142-0701-851.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper
  • Mount
  • Edge, PCB
  • Mounting Type
  • Board Edge, End Launch
  • Insulation Material
  • POLYTETRAFLUORO ETHYLENE
  • Dielectric Material
  • Polytetrafluoroethylene (PTFE)
  • Body Material
  • Brass
  • Center Contact Plating
  • Gold
  • Center Contact Material
  • Beryllium Copper
  • Operating Temperature
  • -65°C~165°C
  • Packaging
  • Tray
  • Published
  • 2002
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Jack, Female Socket
  • Gender
  • Female
  • Voltage - Rated
  • 335V
  • Fastening Type
  • Threaded
  • Contact Finish - Mating
  • NOT SPECIFIED
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Orientation
  • Straight
  • Frequency
  • 18GHz
  • Polarity
  • Normal
  • Body/Shell Style
  • RECEPTACLE
  • Termination Type
  • SURFACE MOUNT
  • Impedance
  • 50Ohm
  • Connector Style
  • SMA
  • Number of Ports
  • 1
  • Mating Cycles
  • 500
  • Contact Termination
  • Solder Tab
  • Shield Termination
  • Solder
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Cinch 142-0701-851.

Datasheets:

142-0701-851 Overview


The product comes in a package of Jack, Female Socket.This device's mounting type is Board Edge, End Launch.It's packaged in a Tray case.For managing a variety of tasks, it has 1 ports.Edge, PCB is mounting the part.Running in -65°C~165°C Operating Temperature.In order to perform efficiently, it should be used with a 18GHz frequency.

142-0701-851 Features




142-0701-851 Applications


There are a lot of Cinch Connectivity Solutions Johnson
142-0701-851 Coaxial Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
