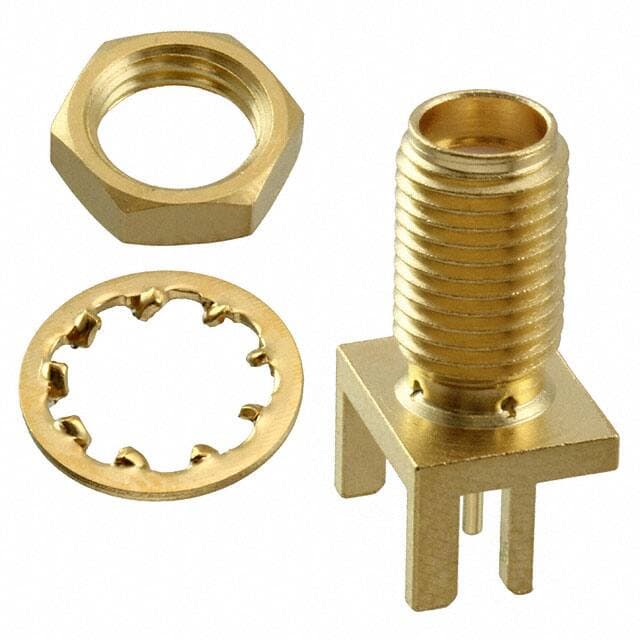

Cinch 142-0721-841

Manufacturer No:

142-0721-841

Manufacturer:

Cinch

Package:

Description:

Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

142-0721-841 information

Cinch 142-0721-841 technical specifications, attributes, parameters and parts with similar specifications to Cinch 142-0721-841.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper

Mount
Edge

Mounting Type
Board Edge, End Launch; Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Insulation Material
PTFE FLUOROCARBON/PFA

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Operating Temperature
-65°C~165°C

Packaging
Bulk

Published
2002

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
335V

Fastening Type
Threaded

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Frequency
18GHz

Polarity
Standard

Insulation Resistance
5GOhm

Body/Shell Style
RECEPTACLE

Impedance
50Ohm

Connector Style
SMA

Number of Ports
1

Mating Cycles
500

Contact Termination
Solder

Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Cinch 142-0721-841.

Datasheets:

cinchconnectivitysolutionsjohnson-1420721841-datasheets-4344.pdf

cinchconnectivitysolutionsjohnson-1420721841-datasheets-4346.pdf

142-0721-841 Overview

The product is packaged in Jack, Female Socket.Board Edge, End Launch; Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.A variety of tasks can be managed via its 1 ports.In this case, Edge mounts the part.The device is operating at -65°C~165°C Operating Temperature.The efficiency of this device can be improved when operating at a frequency of 18GHz.

142-0721-841 Features

142-0721-841 Applications

There are a lot of Cinch Connectivity Solutions Johnson
142-0721-841 Coaxial Connectors applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
