TE Connectivity 1469028-1
TE Connectivity 1469028-1

TE Connectivity 1469028-1

Manufacturer No:

1469028-1

Manufacturer:

TE Connectivity

Package:

Description:

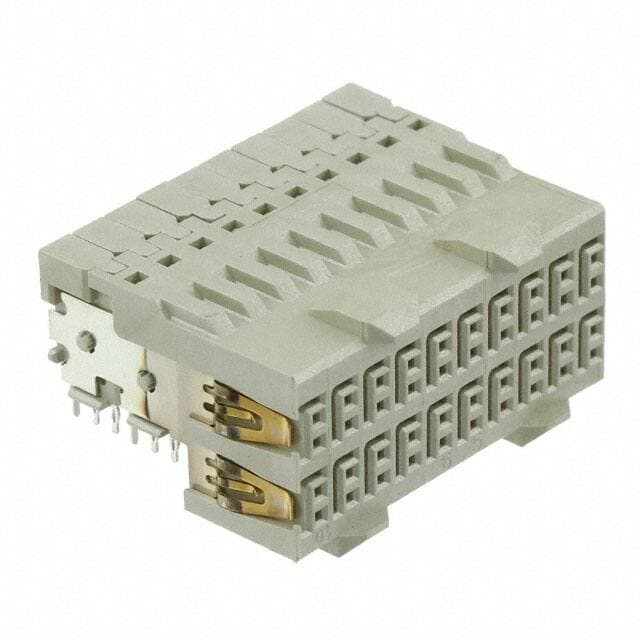

Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit Gold 30.0?in 0.76?m 60 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1469028-1 information

TE Connectivity 1469028-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1469028-1.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Copper, Nickel
  • Mount
  • Edge, Through Hole
  • Mounting Type
  • Board Edge, Through Hole, Right Angle
  • Number of Pins
  • 40
  • Housing Material
  • Polyester
  • PCB Mounting Orientation
  • Right Angle
  • Operating Temperature
  • -65°C~105°C
  • Packaging
  • Tube
  • Series
  • Z-PACK HM-Zd
  • Published
  • 2005
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 60
  • Number of Rows
  • 4
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • 0.700A
  • Pitch
  • 0.098 2.50mm
  • Total Number of Contacts
  • 60
  • Orientation
  • Right Angle
  • Shielding
  • Unshielded
  • Depth
  • 19.9mm
  • Number of Positions Loaded
  • All
  • Current Rating
  • 700mA
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 6
  • Lead Pitch
  • 2.5mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Body Breadth
  • 0.526 inch
  • Contact Gender
  • Female
  • Housing Color
  • Grey
  • Operating Supply Voltage
  • 250V
  • Contact Style
  • SQ PIN-SKT
  • Contact Resistance
  • 50mOhm
  • ELV
  • Non-Compliant

Download datasheets and manufacturer documentation for TE Connectivity 1469028-1.

Datasheets:

PCN Design/Specification:

1469028-1 Overview


Packaging is Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Z-PACK HM-Zd Series, it can be found in this category.It has 40 pins.In this case, Edge, Through Hole mounts the part.The device is operating at -65°C~105°C Operating Temperature.The Backplane Connector is functional when supplied with voltage 250V.
