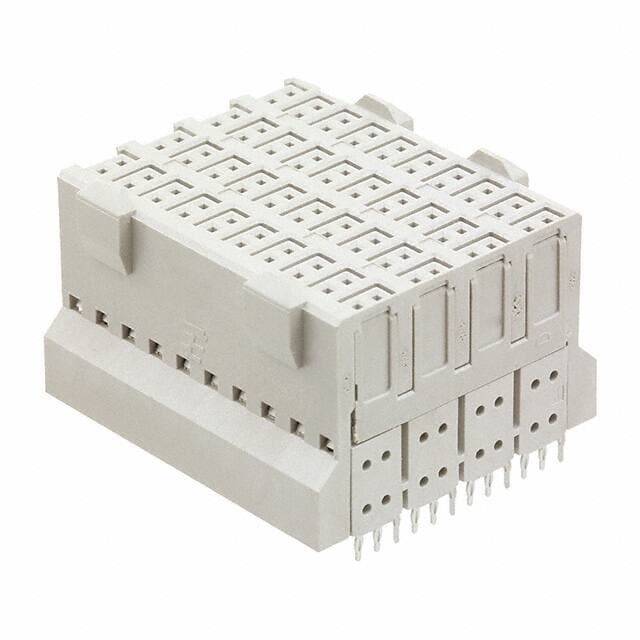

TE Connectivity 1469362-1
TE Connectivity 1469362-1

TE Connectivity 1469362-1

Manufacturer No:

1469362-1

Manufacturer:

TE Connectivity

Package:

Description:

Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit Gold 30.0?in 0.76?m 120 Positions Pitch: 0.098 2.50mm -65°C~105°C Tray Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1469362-1 information

TE Connectivity 1469362-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1469362-1.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 21 Weeks
  • Contact Material
  • Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 80
  • Housing Material
  • Polyester
  • Operating Temperature
  • -65°C~105°C
  • Packaging
  • Tray
  • Series
  • Z-PACK HM-Zd
  • Published
  • 2005
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 120
  • Number of Rows
  • 8
  • Gender
  • Female
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.700A
  • Pitch
  • 0.098 2.50mm
  • Total Number of Contacts
  • 80
  • Orientation
  • Vertical
  • Shielding
  • Unshielded
  • Depth
  • 22.5mm
  • Number of Positions Loaded
  • All
  • Current Rating
  • 700mA
  • Number of Conductors
  • ONE
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 12
  • Lead Pitch
  • 2.5mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Housing Color
  • Grey
  • Operating Supply Voltage
  • 250V
  • Contact Style
  • SQ PIN-SKT
  • ELV
  • Compliant
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 700mA
  • Polarization Key
  • POLARIZED HOUSING
  • Connector Style
  • High Speed

Download datasheets and manufacturer documentation for TE Connectivity 1469362-1.

Datasheets:

PCN Design/Specification:

1469362-1 Overview


This product is packaged in a Receptacle, Female Sockets box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Z-PACK HM-Zd Series.It is equipped with 80 pins.By Through Hole, the part is mounted.Operating temperature is set to -65°C~105°C.The Backplane Connector is capable of working with a supply voltage of 250V.
