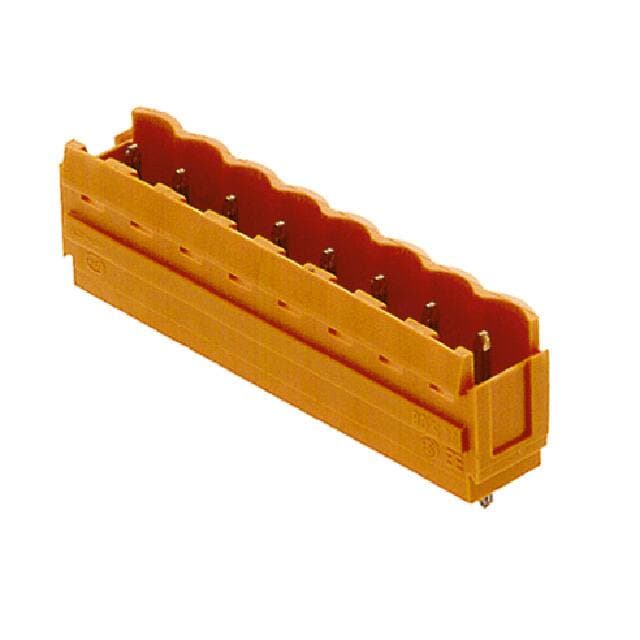

Weidmüller 1520160000

Manufacturer No:

1520160000

Manufacturer:

Package:

Description:

Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1520160000 information

Weidmüller 1520160000 technical specifications, attributes, parameters and parts with similar specifications to Weidmüller 1520160000.

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mounting Type
Through Hole

Housing Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-50°C~100°C

Packaging
Bulk

Series
Omnimate SL

Published
2003

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Type
Header, Male Pins, Shrouded (4 Side)

Number of Positions
8

Color
Orange

Number of Rows
1

Gender
Male

Additional Feature
50 PIECE/PKG

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Pitch
0.200 5.08mm

Total Number of Contacts
8

Orientation
Straight

Ingress Protection
IP20

Depth
8.4mm

Insulation Height
0.472 12.00mm

Number of Conductors
ONE

Reference Standard
UL, CSA

Termination Style
Solder

Reliability
COMMERCIAL

Number Of PCB Rows
1

PCB Contact Pattern
RECTANGULAR

UL Flammability Code
94V-0

Contact Style
RND PIN-SKT

Body/Shell Style
RECEPTACLE

Contact Tail Length
0.126 3.20mm

Max Current Rating
10A

Number of Levels
1

Contact Pattern
RECTANGULAR

Contact Mating Finish
Tin

Voltage - UL
300V

Current - UL
15A

Download datasheets and manufacturer documentation for Weidmüller 1520160000.

1520160000 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate SL Series.Other features include 50 PIECE/PKG, to name just a few.Devices operate at -50°C~100°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.

1520160000 Features

Omnimate SL series

1520160000 Applications

There are a lot of Weidmüller
1520160000 Terminal Blocks applications.
