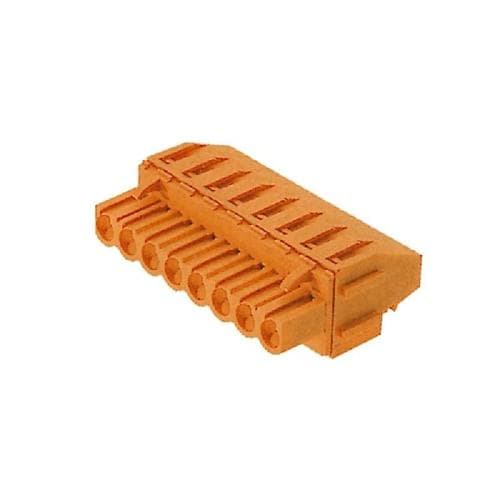

Weidmüller 1560260000

Manufacturer No:

1560260000

Manufacturer:

Package:

Description:

Bulk 0.200 5.08mm Orange 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1560260000 information

Weidmüller 1560260000 technical specifications, attributes, parameters and parts with similar specifications to Weidmüller 1560260000.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-50°C~100°C

Packaging
Bulk

Series
Omnimate BL

Published
2009

JESD-609 Code
e3

Feature
Retention Latches (Non-Wire Side)

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Screw

Type
Plug, Female Sockets

Number of Positions
8

Color
Orange

Number of Rows
1

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Pitch
0.200 5.08mm

Orientation
Straight

Depth
26.9mm

Insulation Height
1.059 26.90mm

Termination Style
Screw - Clamping Yoke (Tension Sleeve)

Number of Contacts
8

UL Flammability Code
94V-0

Voltage
300V

Max Supply Voltage
300V

Max Current Rating
15A

Number of Levels
1

Current
10A

Wire Gauge (Max)
26 AWG

Wire Gauge (Min)
12 AWG

Contact Mating Finish
Tin

Wire Gauge or Range - AWG
12-26 AWG

Voltage - IEC
400V

Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)

Plug Wire Entry
270°

Wire Gauge or Range - mm²
0.2-2.5mm2

Wire Strip Length
7mm

Current - IEC
15A

Screw Size
M2.5

Download datasheets and manufacturer documentation for Weidmüller 1560260000.

Datasheets:

weidmller-1560260000-datasheets-9269.pdf

1560260000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate BL Series.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Cable, Free Hanging is used to mount the part.In this case, the device operates at -50°C~100°C Operating Temperature.It is recommended that the supply voltage of this chip not exceed 300V.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
