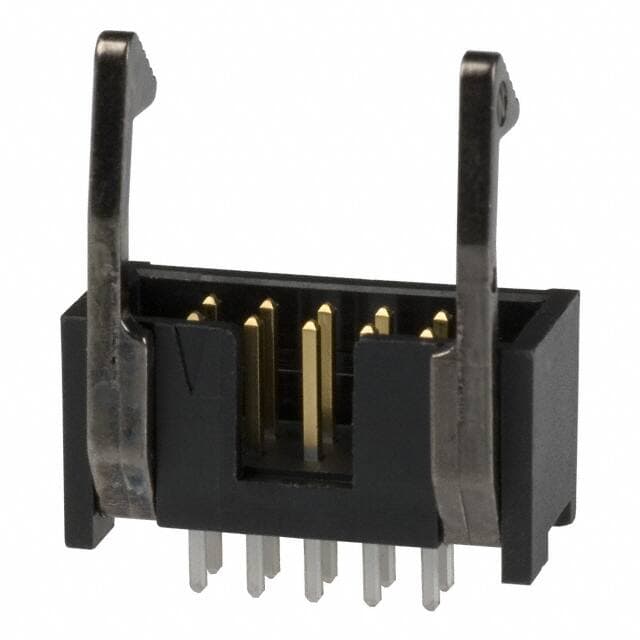

TE Connectivity 1761606-3

Manufacturer No:

1761606-3

Manufacturer:

Package:

Description:

AMP-Latch Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold or Gold-Palladium Polybutylene Terephthalate (PBT) 10-Position Board to Cable/Wire 0.404 10.26mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1761606-3 information

TE Connectivity 1761606-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1761606-3.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 6 days ago)

Factory Lead Time
5 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT)

Housing Material
PBT

PCB Mount Retention
Without

Operating Temperature
-65°C~105°C

Packaging
Tube

Series
AMP-Latch

Published
2009

Feature
Keying Slot

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Number of Rows
2

Voltage - Rated
250VAC

Additional Feature
LOW PROFILE, MILITARY, CENTER POLARIZED

Fastening Type
Latch Lock/Eject Hooks, Long

Contact Finish - Mating
Gold or Gold-Palladium

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
1A per Contact

Orientation
Vertical

Insulation Height
0.404 10.26mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.100 2.54mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.102 2.60mm

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Lead Pitch
2.54mm

Contact Finish - Post
Tin

Contact Length - Mating
0.237 6.02mm

Download datasheets and manufacturer documentation for TE Connectivity 1761606-3.

Datasheets:

teconnectivityampconnectors-117616061-datasheets-1345.pdf

1761606-3 Overview

You get it in Header packaging.Mounting type Through Hole is selected for the device.Packaged in a Tube case.A member of the AMP-Latch Series.Besides that, there's also LOW PROFILE, MILITARY, CENTER POLARIZED, to name a few.This feature renders it more powerful in a number of ways because of its Keying Slot feature.There's a Through Hole mount on the part.It operates at a voltage of 250V.Device runs in -65°C~105°C operating temperature.

1761606-3 Features

AMP-Latch series

1761606-3 Applications

There are a lot of TE Connectivity AMP Connectors
1761606-3 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
