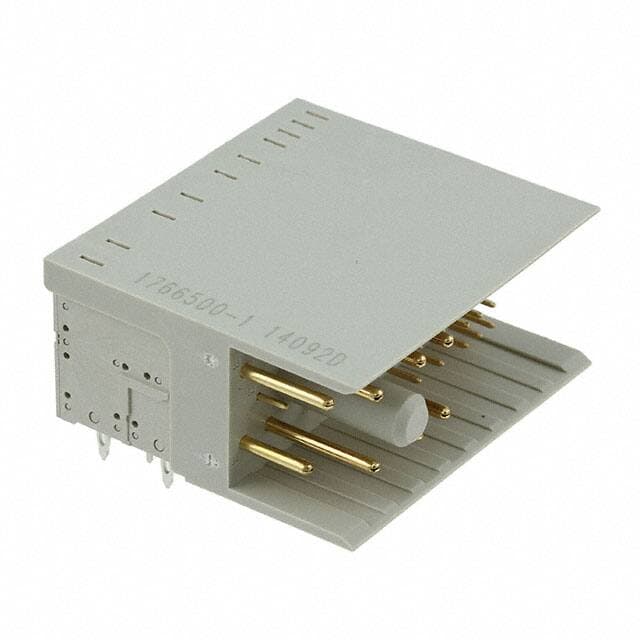

TE Connectivity 1766500-1

Manufacturer No:

1766500-1

Manufacturer:

TE Connectivity

Package:

Description:

Plug, Male Pins Press-Fit Gold Gray 50.0?in 1.27?m 34 Positions Tube Through Hole, Right Angle

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1766500-1 information

TE Connectivity 1766500-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1766500-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
11 Weeks

Contact Material
Copper

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Housing Material
Thermoplastic

PCB Mounting Orientation
Right Angle

Packaging
Tube

Published
2005

Feature
Guide Pin

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
30

Termination
Press-Fit

Connector Type
Plug, Male Pins

Number of Positions
34

Color
Gray

Number of Rows
2

Gender
Male

Orientation
Right Angle

Depth
41.3mm

Number of Positions Loaded
30

Current Rating
1A

Number of Contacts
30

Housing Color
Black

Row Spacing
2.7 mm

Plating
Gold

Connector Style
AdvancedTCA®

Number of Ports
1

Sealable
No

Contact Layout, Typical
26 Signal, 8 Power

Contact Retention
With

Connector Usage
Front Board

Length
46.1mm

Contact Finish Thickness
50.0?in 1.27?m

Plating Thickness
760 nm

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for TE Connectivity 1766500-1.

1766500-1 Overview

Packaging is in the form of Plug, Male Pins.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Several benefits come from the Guide Pin feature.There is a mounting hole at Through Hole.In addition to 1 ports, it is equipped with a variety of other ports as well.According to our estimation, the chip contains 30 termination points.

1766500-1 Features

30 basic kinds of terminations

1766500-1 Applications

There are a lot of TE Connectivity AMP Connectors
1766500-1 Backplane Connectors applications.

Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
