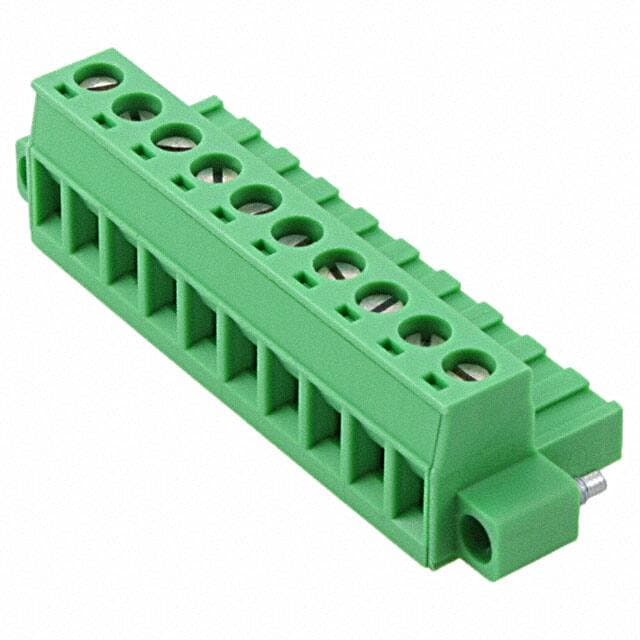

Phoenix 1778069
Phoenix 1778069

Phoenix 1778069

Manufacturer No:

1778069

Manufacturer:

Phoenix

Package:

Description:

Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1778069 information

Phoenix 1778069 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1778069.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Free Hanging, Panel, Plug-In
  • Mounting Type
  • Free Hanging (In-Line)
  • Material
  • Polyamide
  • Housing Material
  • Polyamide (PA), Nylon
  • Weight
  • 128.999997g
  • Packaging
  • Bulk
  • Series
  • COMBICON MSTB
  • Published
  • 2010
  • Feature
  • Mating Flange
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Connector Type
  • Screw, Socket
  • Type
  • Plug, Female Sockets
  • Color
  • Green
  • Number of Rows
  • 1
  • Gender
  • Female
  • Voltage - Rated
  • 250V
  • Additional Feature
  • PA, UL 94V-0
  • HTS Code
  • 8536.69.40.40
  • Orientation
  • Right Angle
  • Depth
  • 18.2mm
  • Insulation Height
  • 0.591 15.00mm
  • Current Rating
  • 12A
  • Termination Style
  • Screw - Rising Cage Clamp
  • Number of Contacts
  • 10
  • Voltage
  • 300V
  • Max Supply Voltage
  • 250V
  • Max Current Rating
  • 12A
  • Number of Levels
  • 1
  • Current
  • 12A
  • Wire Gauge (Max)
  • 30 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Number of Decks
  • 1
  • Wire Gauge or Range - AWG
  • 12-30 AWG
  • Current - UL
  • 15A
  • Voltage - IEC
  • 630V
  • Torque - Screw
  • 0.5-0.6 Nm (4.4-5.3 Lb-In)
  • Number of Ways
  • 10
  • Safety Approval
  • UL
  • Plug Wire Entry
  • 180°
  • Wire Gauge or Range - mm²
  • 0.2-2.5mm2
  • Wire Strip Length
  • 7mm

Download datasheets and manufacturer documentation for Phoenix 1778069.

Datasheets:

PCN Design/Specification:

1778069 Overview


Currently, it is packaged in Screw, Socket.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the COMBICON MSTB Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, UL 94V-0, to name a few.A number of features make the Mating Flange feature more powerful.Free Hanging, Panel, Plug-In represents the mounting point for the part.This chip should not be supplied with voltages greater than zero.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1778069 Features


COMBICON MSTB series


1778069 Applications


There are a lot of Phoenix Contact
1778069 Terminal Blocks applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control
