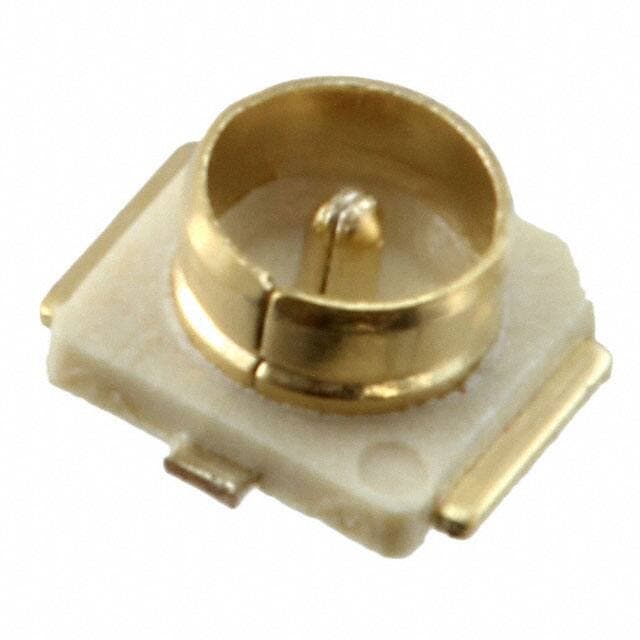

TE Connectivity 1909763-1
TE Connectivity 1909763-1

TE Connectivity 1909763-1

Manufacturer No:

1909763-1

Manufacturer:

TE Connectivity

Package:

SMD/SMT

Description:

Jack, Male Pin Snap-On 50Ohm Cut Tape (CT) U.FL (UMCC) Solder 1 Port Liquid Crystal Polymer (LCP) -40°C~90°C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1909763-1 information

TE Connectivity 1909763-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1909763-1.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Mount
  • Panel
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SMD/SMT
  • Insulation Material
  • Thermoplastic
  • Dielectric Material
  • Liquid Crystal Polymer (LCP)
  • Body Material
  • Copper Alloy
  • Center Contact Material
  • Copper Alloy
  • Operating Temperature
  • -40°C~90°C
  • Packaging
  • Cut Tape (CT)
  • Published
  • 2010
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Jack, Male Pin
  • Gender
  • Female
  • Voltage - Rated
  • 60V
  • Fastening Type
  • Snap-On
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Straight
  • Frequency
  • 6GHz
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Housing Color
  • Ivory
  • Body Depth
  • 0.049 inch
  • Contact Style
  • COAX
  • ELV
  • Compliant
  • Impedance
  • 50Ohm
  • Connector Style
  • U.FL (UMCC)
  • Number of Ports
  • 1
  • Mating Cycles
  • 30
  • Contact Termination
  • Solder
  • Insertion Loss
  • 0.24dB
  • Body Finish
  • Gold
  • Length
  • 3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for TE Connectivity 1909763-1.

Datasheets:

1909763-1 Overview


Currently, it is packaged in Jack, Male Pin.Surface Mount is the mounting type for the device.The product is packaged in a Cut Tape (CT) case.Packages with the SMD/SMT contain a device.A number of tasks can be managed using the 1 ports.Mounting of the part is based on Panel.It runs at -40°C~90°C Operating Temperature.It is capable of performing efficiently when using a 6GHz frequency.

1909763-1 Features




1909763-1 Applications


There are a lot of TE Connectivity AMP Connectors
1909763-1 Coaxial Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
