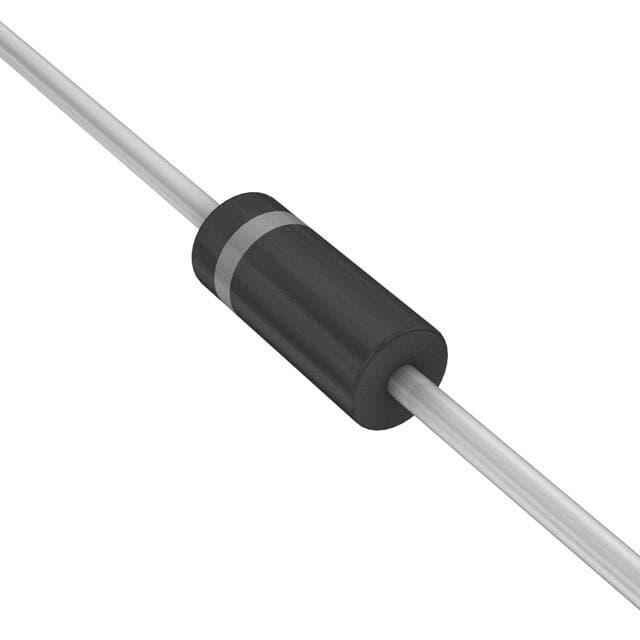

ONSEMI 1N5360B

Manufacturer No:

1N5360B

Manufacturer:

ONSEMI

Package:

T-18, Axial

Description:

4Ohms ±5% 25V 500nA @ 19V -65°C~200°C 5W T-18, Axial

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1N5360B information

ONSEMI 1N5360B technical specifications, attributes, parameters and parts with similar specifications to ONSEMI 1N5360B.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
T-18, Axial

Number of Pins
2

Supplier Device Package
Axial

Material
Plastic

Operating Temperature
-65°C~200°C

Packaging
Bulk

Published
2008

Tolerance
±5%

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
200°C

Min Operating Temperature
-65°C

Power Rating
5W

Voltage - Rated DC
25V

Max Power Dissipation
5W

Base Part Number
1N5360

Impedance
4Ohm

Element Configuration
Single

Current - Reverse Leakage @ Vr
500nA @ 19V

Power Dissipation
5W

Voltage - Forward (Vf) (Max) @ If
1.2V @ 1A

Power - Max
5W

Impedance-Max
4Ohms

Test Current
50mA

Voltage - Zener (Nom) (Vz)
25V

Zener Voltage
25V

Voltage Tolerance
5%

Zener Current
190mA

Height
3.68mm

Length
8.89mm

Width
3.68mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI 1N5360B.

1N5360B Overview

A reverse leakage current of 500nA @ 19V is required to supply this electrical device.500nA is the maximum reverse leakage current.Zener (Nom)'s maximum voltage is reduced to zero during operation.The design is highly flexible due to the zener current of 190mA.1.2V @ 1A is reached when the maximum voltage - Forward (Vf) is supplied for its operation.

1N5360B Features

reverse leakage current of 500nA @ 19V
500nA @ 19V is the maximum voltage (Tol)
Reverse leakage current reaches 500nA
the zener current of 190mA

1N5360B Applications

There are a lot of ON Semiconductor
1N5360B applications of zener single diodes.
