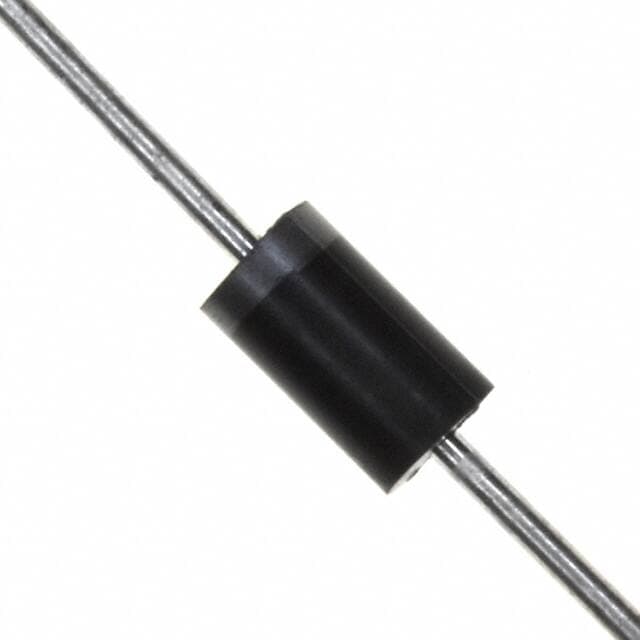

VISHAY 1N5407-E3/54
VISHAY 1N5407-E3/54

VISHAY 1N5407-E3/54

Manufacturer No:

1N5407-E3/54

Manufacturer:

VISHAY

Package:

DO-201AD, Axial

Description:

Standard Diode Rectifier Standard Recovery >500ns, > 200mA (Io) 1.2V @ 3A -50°C~150°C 5μA @ 800V Tape & Reel (TR) DO-201AD, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1N5407-E3/54 information

VISHAY 1N5407-E3/54 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 1N5407-E3/54.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Package / Case
  • DO-201AD, Axial
  • Mounting Type
  • Through Hole
  • Mount
  • Through Hole
  • Number of Pins
  • 2
  • Supplier Device Package
  • DO-201AD
  • Published
  • 2008
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -50°C
  • Capacitance
  • 30pF
  • Current Rating
  • 3A
  • Base Part Number
  • 1N5407
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Standard Recovery >500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 5μA @ 800V
  • Output Current
  • 3A
  • Voltage - Forward (Vf) (Max) @ If
  • 1.2V @ 3A
  • Forward Current
  • 3A
  • Operating Temperature - Junction
  • -50°C~150°C
  • Voltage - DC Reverse (Vr) (Max)
  • 800V
  • Current - Average Rectified (Io)
  • 3A
  • Forward Voltage
  • 1.2V
  • Max Reverse Voltage (DC)
  • 800V
  • Average Rectified Current
  • 3A
  • Peak Reverse Current
  • 5μA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 800V
  • Capacitance @ Vr, F
  • 30pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 200A
  • Reverse Voltage
  • 800V
  • Max Forward Surge Current (Ifsm)
  • 200A
  • Diameter
  • 5.3mm
  • Length
  • 9.5mm
  • RoHS Status
  • RoHS Compliant
  • Radiation Hardening
  • No
  • REACH SVHC
  • Unknown
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY 1N5407-E3/54.

Datasheets:

RohsStatement:

1N5407-E3/54 Overview


Reverse voltages of 800V are reasonable.A rectified current of 3A volts is averaged for this device.A value of 3A is the maximum forward current that can be allowed.This fuse has a current rating of 3A, which is the maximum current that will not deteriorate the fuse element over a long period.200A is the maximum value of surge current.A device that has a capacitance of 30pF can provide a value of 30pF.As indicated by the data chart in the datasheets, the peak reverse is 5μA.

1N5407-E3/54 Features


an average rectified current of 3A volts
a current rating of 3A
the peak reverse is 5μA


1N5407-E3/54 Applications


There are a lot of Vishay Semiconductor Diodes Division
1N5407-E3/54 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
