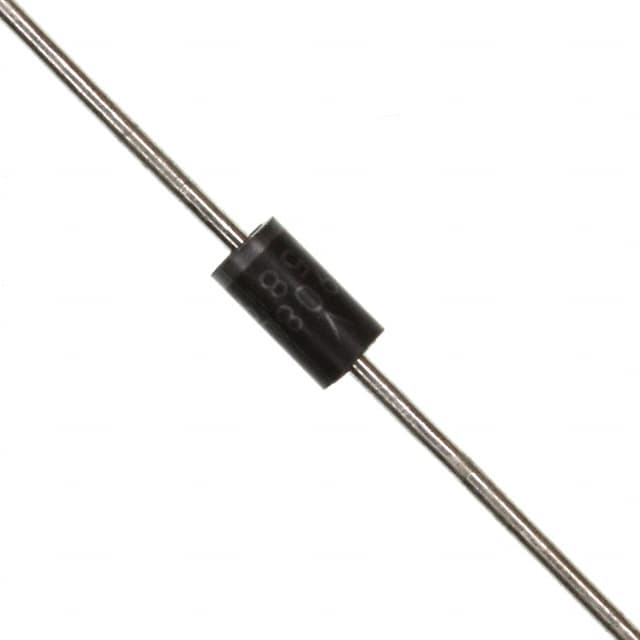

ONSEMI 1N5819

Manufacturer No:

1N5819

Manufacturer:

ONSEMI

Package:

DO-204AL, DO-41, Axial

Description:

1.0 A, 40 V, Schottky Barrier Rectifier

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1N5819 information

ONSEMI 1N5819 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI 1N5819.

Type
Parameter

Package Type
Axial Lead / DO-41

MSL Type
NA

MSL Temp (°C)
0

VRRM Min (V)
40

trr Max (ns)
-

Cj Max (pF)
-

Container Type
REEL

Container Qty.
5000

IRM Max (µA)
1000

IO(rec) Max (A)
1

Case Outline
017AH

Configuration
Single

VF Max (V)
0.6

IFSM Max (A)
25

Download datasheets and manufacturer documentation for ONSEMI 1N5819.

Datasheet:

2e0109cca7c3492f7738bab1438562f8.pdf

Package Drawing:

a0014eaa7502d6cb1f77af364443dd3c.pdf

bdbb8d8017f0521c848ebba66fff6baf.pdf

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier¿s state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes and polarity protection diodes.

Feature

Extremely Low V_F
Low Stored Charge, Majority Carrier Conduction
Low Power Loss/High Efficiency

Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 0.4 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Shipped in plastic bags, 1000 per bag.
Available Tape and Reeled, 5000 per reel, by adding a "RL" suffix to the part number
Polarity: Cathode Indicated by Polarity Band
Marking: 1N5817, 1N5818, 1N5819
Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds
These are Pb-Free Devices
