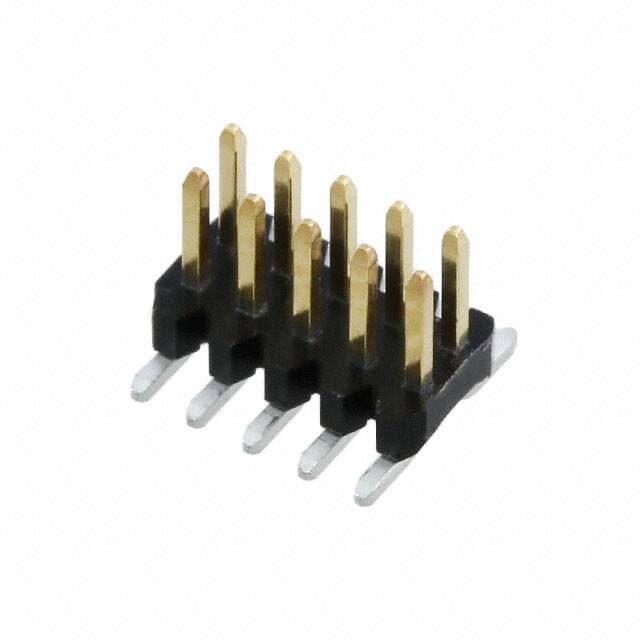

Amphenol 20021121-00010C4LF
Manufacturer No:
20021121-00010C4LF
Manufacturer:
Package:
Description:
Minitek127® 1.27mm Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Thermoplastic 10-Position Board to Board
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
20021121-00010C4LF information
Amphenol 20021121-00010C4LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 20021121-00010C4LF.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Number of Pins
- 10
- Contact Shape
- Square
- Insulation Material
- Thermoplastic
- Housing Material
- Thermoplastic
- Packaging
- Tape & Reel (TR)
- Series
- Minitek127® 1.27mm
- Published
- 2013
- Feature
- Pick and Place
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Header
- Number of Positions
- 10
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Color
- Black
- Number of Rows
- 2
- Gender
- Male
- Voltage - Rated
- 125V
- Contact Finish - Mating
- Gold
- Contact Type
- Male Pin
- Pitch
- 1.27mm
- Orientation
- Straight
- Depth
- 3.4mm
- Style
- Board to Board
- Number of Positions Loaded
- All
- Current Rating
- 1A
- Pitch - Mating
- 0.050 1.27mm
- Insulation Color
- Black
- Row Spacing - Mating
- 0.050 (1.27mm)
- Shrouding
- Unshrouded
- Number of Contacts
- 10
- Contact Finish - Post
- Tin
- Contact Length - Mating
- 0.120 3.05mm
- Housing Color
- Black
- Contact Resistance
- 30mOhm
- Insulation Resistance
- 100MOhm
- Max Voltage Rating (AC)
- 125V
- Mating Post Length
- 3.05mm
- Length
- 6.35mm
- Contact Finish Thickness - Mating
- 10.0μin 0.25μm
- Contact Finish Thickness - Post
- 50.0μin 1.27μm
Download datasheets and manufacturer documentation for Amphenol 20021121-00010C4LF.
20021121-00010C4LF Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the Minitek127® 1.27mm Series.Devices with 10 pins are available.You should use it when it's below 85°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Pick and Place feature makes it more powerful.Surface Mount is used to mount the part.
20021121-00010C4LF Features
Minitek127® 1.27mm series
20021121-00010C4LF Applications
There are a lot of Amphenol ICC (FCI)
20021121-00010C4LF Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
