TE Connectivity 206036-1

Manufacturer No:

206036-1

Manufacturer:

TE Connectivity

Package:

Description:

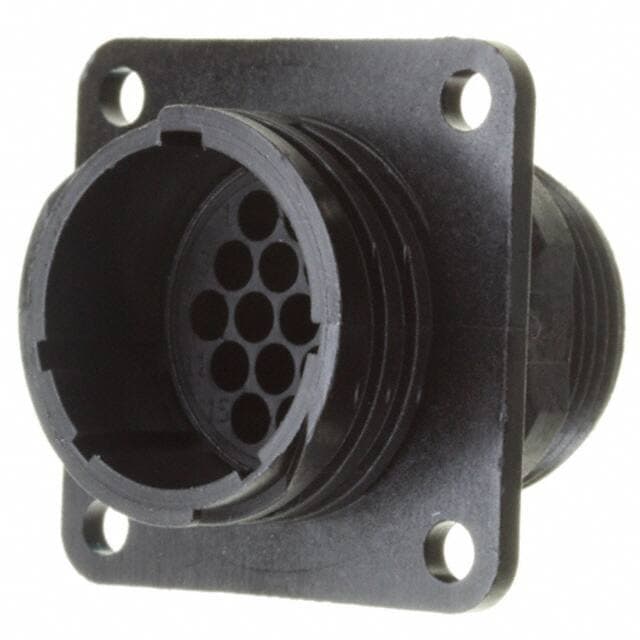

Receptacle Housing Polyamide (PA), Nylon Panel Mount Bulk Threaded Unshielded Contacts Not Included CPC Series 1

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

206036-1 information

TE Connectivity 206036-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 206036-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
4 Weeks

Mount
Panel

Mounting Type
Panel Mount

Mounting Feature
Flange

Contact Shape
Circular

Shell Material
Polyamide (PA), Nylon

Housing Material
Thermoplastic

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
CPC Series 1

Published
1997

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Connector Type
Receptacle Housing

Type
For Male Pins

Gender
Receptacle

Fastening Type
Threaded

Voltage - Rated DC
250V

DIN Conformance
NO

Filter Feature
NO

Contact Type
Crimp

Total Number of Contacts
16

Orientation
A

Shielding
Unshielded

Depth
36.45mm

Current Rating
13A

Reference Standard
UL

Shell Size - Insert
17-16

Voltage - Rated AC
250V

Housing Color
Black

Operating Supply Voltage
600V

Insulation Resistance
5GOhm

Note
Contacts Not Included

ELV
Compliant

Number of Ports
1

Sealable
No

Number of Power Positions
0

Insulation Diameter
2.54 mm

Mating Alignment
With

Height
36.45mm

Length
34.29mm

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TE Connectivity 206036-1.

206036-1 Overview

The product comes in a package of Receptacle Housing.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the CPC Series 1 Series.There are many similarities between this part and other For Male Pins products.For mounting this part, a Panel socket is required.The device has 1 ports for managing a variety of tasks.The term 16 termination refers to the practice of terminating a transmission line with a device that matches the characteristic impedance of the transmission line.
