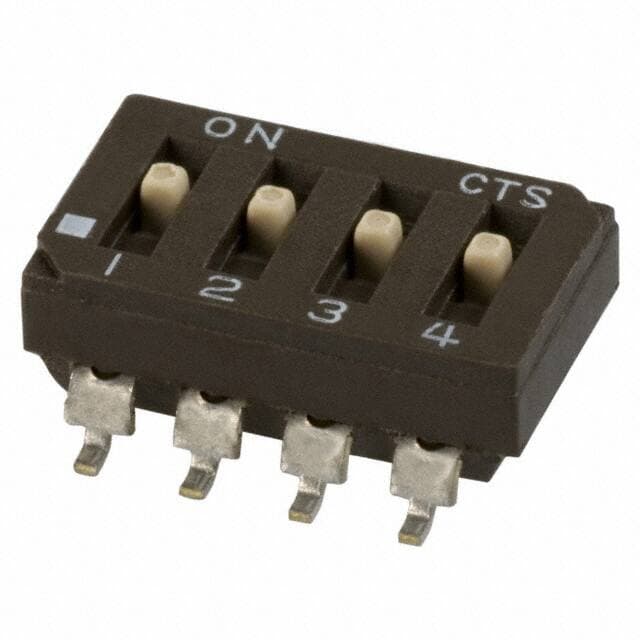

CTS 219-4MSTR

Manufacturer No:

219-4MSTR

Manufacturer:

CTS

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

219-4MSTR information

CTS 219-4MSTR technical specifications, attributes, parameters and parts with similar specifications to CTS 219-4MSTR.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Beryllium Copper

Mounting Type
Surface Mount

Surface Mount
NO

Operating Temperature
-55°C~85°C

Packaging
Tape & Reel (TR)

Series
219

Published
2008

JESD-609 Code
e3

Feature
Epoxy Sealed Terminals, Tape Seal

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Number of Positions
4

Terminal Finish
Tin (Sn)

Voltage - Rated
20VDC

HTS Code
8536.50.90.65

Current Rating (Amps)
100mA

Pitch
0.100 2.54mm Full

Packing Method
TAPE AND REEL

Contact Finish
Gold

Termination Style
Gull Wing

Body Breadth
6.7 mm

Circuit
SPST

Contact Current(DC)-Max
0.1A

Sealing
BOTTOM SEALED; TOP TAPE SEALED

Contact Voltage(DC)-Max
20V

Electrical Life
2,000 Cycles

Switch Type
SLIDE DIP SWITCH

Number of Switch Sections
4

Washable
Yes

Actuator Level
Raised

Length
0.458 11.63mm

Body Height
3.8mm

Height Above Board
0.170 4.33mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CTS 219-4MSTR.

Description:

CTS Components DIP Switches 219-4MSTR are single-pole single-throw (SPST) switches with four raised slide actuators. They are designed for surface mount applications and feature a 0.1A current rating and 20VDC voltage rating. The terminals are gull wing style with a 2.54mm pitch. The switches are available in tape and reel packaging.

Features:
* SPST switch with four raised slide actuators
* 0.1A current rating
* 20VDC voltage rating
* Gull wing style terminals with 2.54mm pitch
* Tape and reel packaging

Applications:
CTS Components DIP Switches 219-4MSTR are suitable for a variety of applications, including consumer electronics, automotive, industrial, and medical. They can be used for controlling power, switching signals, and providing on/off control.
