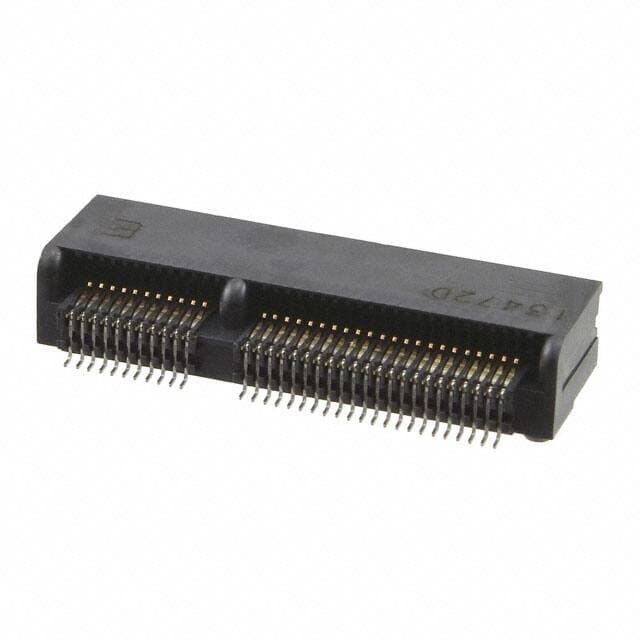

TE Connectivity 2199230-4
TE Connectivity 2199230-4

TE Connectivity 2199230-4

Manufacturer No:

2199230-4

Manufacturer:

TE Connectivity

Package:

Description:

Female Black 0.020 0.50mm Copper Alloy 2 Rows Tape & Reel (TR) Solder Gold 67 Positions Thermoplastic

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2199230-4 information

TE Connectivity 2199230-4 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 2199230-4.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 25 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Thermoplastic
  • Material - Insulation
  • Thermoplastic
  • PCB Mounting Orientation
  • Right Angle
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • Feature
  • Board Guide
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 67
  • Max Operating Temperature
  • 80°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 50V
  • Pitch
  • 0.020 0.50mm
  • Current Rating
  • 500mA
  • Contact Finish
  • Gold
  • Number of Contacts
  • 67
  • Housing Color
  • Black
  • Operating Supply Voltage
  • 50V
  • Card Type
  • M.2 (NGFF) Mini Card
  • Read Out
  • Dual
  • Insulation Resistance
  • 500MOhm
  • Row Spacing
  • 7.55 mm
  • ELV
  • Compliant
  • Plating
  • Gold
  • Sealable
  • No
  • Contact Current Rating
  • 500mA
  • Circuit Application
  • Power
  • Height
  • 4.191mm
  • Length
  • 21.8948mm
  • Width
  • 8.7mm
  • Contact Finish Thickness
  • 15.0?in 0.38?m
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TE Connectivity 2199230-4.

PCN Design/Specification:

2199230-4 Overview


The material was packaged in accordance with Tape & Reel (TR)'s specifications.We recommend mounting type Surface Mount, Right Angle.Currently, the device offers Board Guide features.Operating at a maximum temperature of 80°C°C ensures stable performance.For it to function properly, it must be maintained at a temperature of -40°C degrees Celsius at all times.
