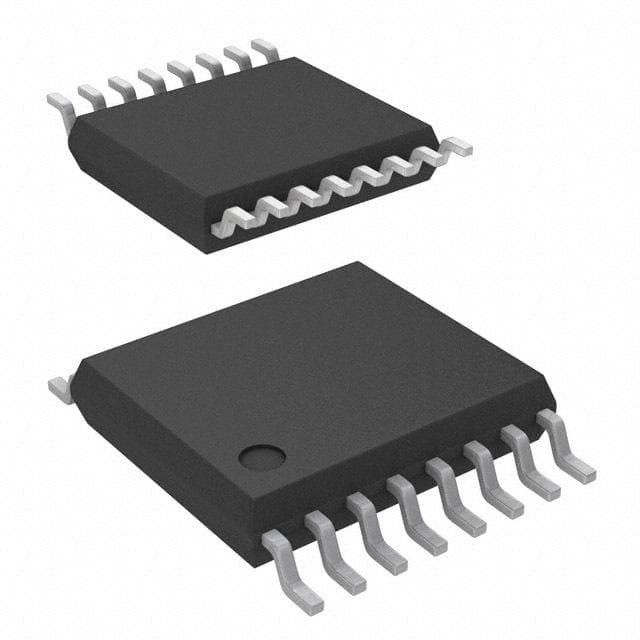

Renesas 2308-1HPGGI

Manufacturer No:

2308-1HPGGI

Manufacturer:

Renesas

Package:

TSSOP

Description:

3.3V 133.3MHz Clock Generators 16 Pins TSSOP 16 Terminals Rail/Tube

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2308-1HPGGI information

Renesas 2308-1HPGGI technical specifications, attributes, parameters and parts with similar specifications to Renesas 2308-1HPGGI.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
16

Packaging
Rail/Tube

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
16

Number of Outputs
8

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Operating Supply Current
70mA

Nominal Supply Current
70mA

Frequency (Max)
133.3MHz

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Max Duty Cycle
60 %

Same Edge Skew-Max (tskwd)
0.2 ns

Length
5mm

Width
4.4mm

Thickness
1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 2308-1HPGGI.

Datasheets:

integrateddevicetechnology-23081hpggi-datasheets-5170.pdf

2308-1HPGGI Overview

In order to package it as a clock IC, the Rail/Tube package is used. A Clock PLL is included with the TSSOP package. Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 16 terminations. Clock generator ics require a voltage of 3.3V. As the Clock PLL's input, LVTTL is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 133.3MHz. It is a 16-bit IC that is designed for microprocessors specifically. The clock PLL has 16 pins that are available. A frequency generator with -40°C operations has an impressive low-temperature performance. At a temperature of 85°C, the clock generator ic can operate with attenuated performance. In terms of the supply voltage, PLL clock can handle 3.3V volts. Fundamentally, this is a kind of Clock Drivers clock PLL. The frequency synthesizer features 8 signal outputs to ensure as high a frequency as possible. As a result of this digital clock generator, there is a low timing skew at 0.2 ns max. A voltage exceeding 3.6V is not acceptable for supply to this frequency generator. This clock generator ic requires a voltage supply no lower than 3V. Logic circuits that use PLL BASED CLOCK DRIVER logic are composed of this analog clock generator. For the clock time generator to function properly, 70mA of supply current must be provided.

2308-1HPGGI Features

Available in the TSSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V

2308-1HPGGI Applications

There are a lot of Integrated Device Technology (IDT)
2308-1HPGGI Clock Generators applications.

10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
Test equipment
