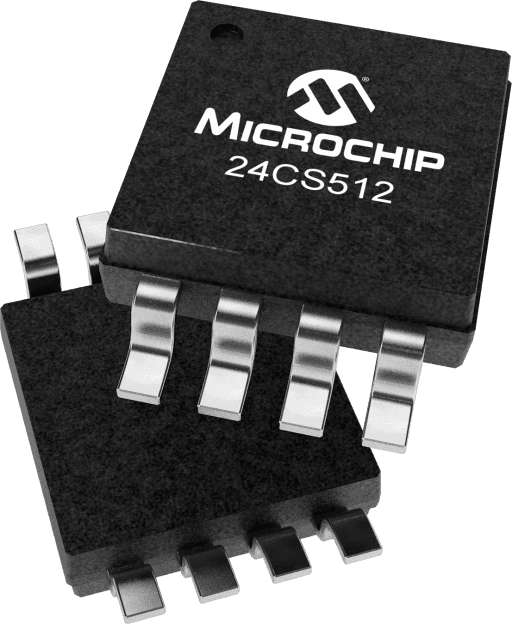

Microchip 24CS512-I/SM

Manufacturer No:

24CS512-I/SM

Manufacturer:

Microchip

Package:

Description:

The 24CS512 is a 64K x 8 (512K-bit) Serial Electrically Erasable PROM (EEPROM) with built-in Error Correction and Software Write Protection

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

24CS512-I/SM information

Microchip 24CS512-I/SM technical specifications, attributes, parameters and parts with similar specifications to Microchip 24CS512-I/SM.

Type
Parameter

Density
512 Kbit

Endurance
1,000,000

Max. Clock Freq.
3.4 MHz

Operating Voltage Max (V)
5.5

Operating Voltage Min (V)
1.7

Page Size (Bytes)
128

Write Protect Scheme
Software Configurable

Data Retention
200

Download datasheets and manufacturer documentation for Microchip 24CS512-I/SM.

The Microchip Technology Inc. 24CS512 is a 512Kb (64K x 8) I2C Serial Electrically Erasable PROM (EEPROM), capable of speeds up to 3.4Mhz and operation across a broad voltage range (1.7V to 5.5V). This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4 Mbit address space. This device is available in PDIP-8, SOIC-8, SOIJ-8, UDFN-8, SOT-23-5, TSSOP-8, MSOP-8 and WLCSP-8 packages.

64K x 8 (512 Kbit)
2-Wire Serial Interface, I2C™ Compatible
3.4MHz High Speed Mode Capable
Operating voltage 1.7V to 5.5V
Pre-programmed 128-bit serial number
User-programmable, lockable 128-byte ID page
Enhanced Software Write Protection
Hardware Write-Protect Pin
Built-in Error Correction Code (ECC) Logic
Page Write Time 5 ms Max.
Standby current 1 uA, max.
Cascadable up to Eight Devices
Pb-Free and RoHS Compliant
Factory Programming Available
