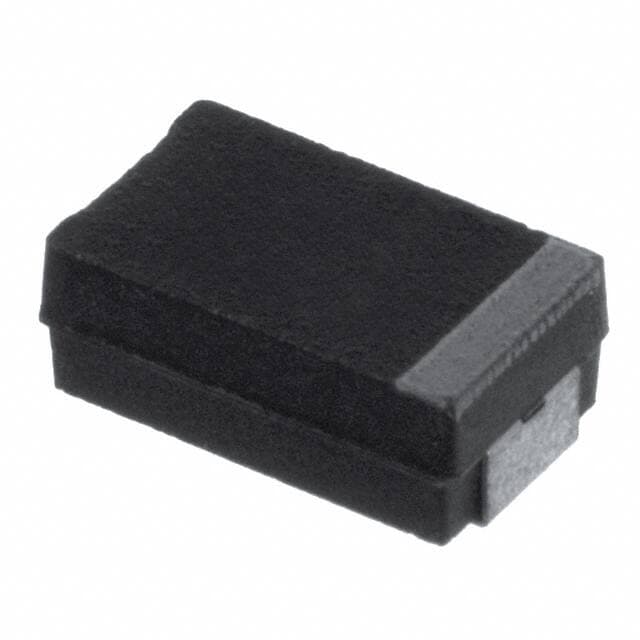

VISHAY 293D106X5025C2TE3

Manufacturer No:

293D106X5025C2TE3

Manufacturer:

VISHAY

Package:

2312 (6032 Metric)

Description:

10μF ±5% 1.5Ohm 2-Termination POLARIZED Tantalum 2.5μA Tape & Reel (TR) 2312 (6032 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

293D106X5025C2TE3 information

VISHAY 293D106X5025C2TE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 293D106X5025C2TE3.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
2312 (6032 Metric)

Terminal Shape
J BEND

Dielectric Material
Tantalum

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
TANTAMOUNT®, 293D

Published
2010

Size / Dimension
0.236Lx0.126W 6.00mmx3.20mm

Tolerance
±5%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Type
Molded

HTS Code
8532.21.00.50

Capacitance
10μF

Voltage - Rated DC
25V

Case Code (Metric)
6032

Case Code (Imperial)
2412

ESR (Equivalent Series Resistance)
1.5Ohm

Polarity
POLARIZED

Leakage Current
2.5μA

Ripple Current
190mA

Tan Delta
0.06

Dissipation Factor
6 %

Manufacturer Size Code
C

Height
2.8mm

Height Seated (Max)
0.110 2.79mm

Length
6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for VISHAY 293D106X5025C2TE3.

293D106X5025C2TE3 Overview

In this case, 190mA is the ripple current of the capacitor.Similarly, equivalent series resistance (ESR) is also known as internal resistance, as it represents the loss of useful energy in a simple electronic circuit consisting of a resistor and an ideal (perfect) capacitor.A capacitor like this leaks current 2.5μA.When AC is applied through a capacitor, its dissipation factor is 6 %, which indicates the power lost through it.Tan Delta test measures the electrical dielectric properties of insulating oil, and its tan delta is 0.06.

293D106X5025C2TE3 Features

190mA is the ripple current of the capacitor
a leakage current of 2.5μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06

293D106X5025C2TE3 Applications

There are a lot of Vishay Sprague
293D106X5025C2TE3 applications of tantalum capacitors.

Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
