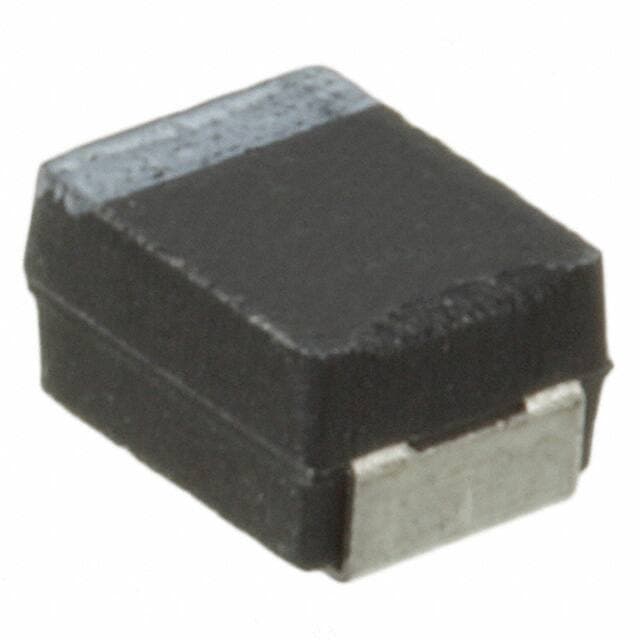

VISHAY 293D226X0016B2TE3

Manufacturer No:

293D226X0016B2TE3

Manufacturer:

VISHAY

Package:

, 1411

Description:

CAPACITOR, TANTALUM, SOLID, POLARIZED, 16 V, 22 uF, SURFACE MOUNT, 1411, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

293D226X0016B2TE3 information

VISHAY 293D226X0016B2TE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 293D226X0016B2TE3.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
, 1411

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Samacsys Manufacturer
Vishay

Additional Feature
ESR IS MEASURED AT 100KHZ

Capacitance
22 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (DRY/SOLID)

ESR
1900 mΩ

Height
1.9 mm

JESD-609 Code
e3

Leakage Current
0.0035 mA

Length
3.5 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Packing Method
TR, EMBOSSED PLASTIC, 7 INCH

Polarity
POLARIZED

Positive Tolerance
20%

Rated (DC) Voltage (URdc)
16 V

Ripple Current
84 mA

Size Code
1411

Surface Mount
YES

Tan Delta
0.06

Terminal Finish
MATTE TIN

Terminal Shape
J BEND

Width
2.8 mm

Download datasheets and manufacturer documentation for VISHAY 293D226X0016B2TE3.

Datasheets:

VISH-S-A0019629288-1.pdf

293D226X0016B2TE3 Overview

Set the capacitor's ripple current to 210mA.Known as internal resistance, equivalent series resistance (ESR) is the loss of energy in an electronic circuit containing a resistor and an ideal (perfect) capacitor, whose resistance is 1.9Ohm in this case.This capacitor leaks 3.5μA current.A capacitor's dissipation factor is the power lost when AC is applied to the capacitor, which is 6 %.The Tan Delta test of insulating oil determines its quality by measuring its electrical dielectric properties.

293D226X0016B2TE3 Features

210mA is the ripple current of the capacitor
a leakage current of 3.5μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06

293D226X0016B2TE3 Applications

There are a lot of Vishay Sprague
293D226X0016B2TE3 applications of tantalum capacitors.

Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
