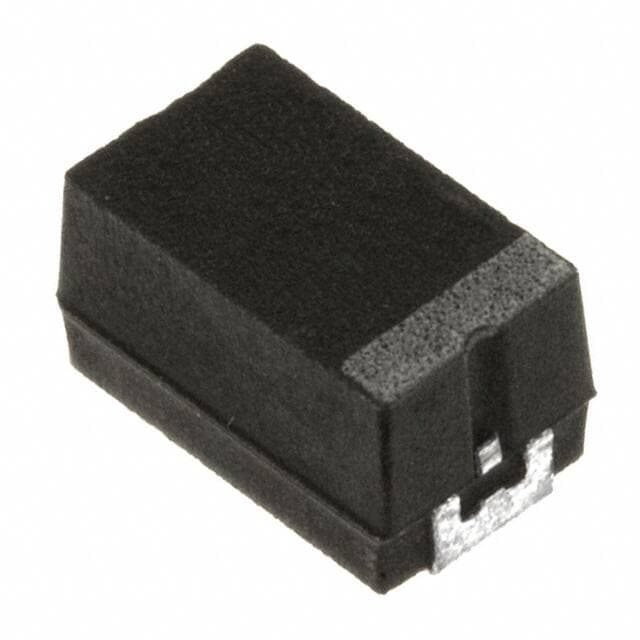

VISHAY 293D476X9025E2TE3

Manufacturer No:

293D476X9025E2TE3

Manufacturer:

VISHAY

Package:

, 2917

Description:

CAPACITOR, TANTALUM, SOLID, POLARIZED, 25 V, 47 uF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

293D476X9025E2TE3 information

VISHAY 293D476X9025E2TE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 293D476X9025E2TE3.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
, 2917

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Samacsys Manufacturer
Vishay

Additional Feature
ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

Capacitance
47 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (DRY/SOLID)

ESR
600 mΩ

Height
4 mm

JESD-609 Code
e3

Leakage Current
0.0118 mA

Length
7.3 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
10%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Packing Method
TR, Embossed Plastic, 7 Inch

Polarity
POLARIZED

Positive Tolerance
10%

Rated (DC) Voltage (URdc)
25 V

Ripple Current
520 mA

Size Code
2917

Surface Mount
YES

Tan Delta
0.06

Terminal Finish
MATTE TIN

Terminal Shape
J BEND

Width
4.3 mm

Download datasheets and manufacturer documentation for VISHAY 293D476X9025E2TE3.

Datasheets:

VISH-S-A0021262148-1.pdf

293D476X9025E2TE3 Overview

In this case, the ripple current of the capacitor is set to 460mA.This resistor has a resistance of 600mOhm, the same value as the equivalent series resistance (ESR), also known as internal resistance.This capacitor leaks current at 11.8?A.When AC is applied through a capacitor, dissipation factor is measured as power loss, and this capacitor has a factor of 6 %.To determine the quality of insulating oil, the Tan Delta test is conducted on it, and its tan delta is 0.06.

293D476X9025E2TE3 Features

460mA is the ripple current of the capacitor
a leakage current of 11.8?A in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06

293D476X9025E2TE3 Applications

There are a lot of Vishay Sprague
293D476X9025E2TE3 applications of tantalum capacitors.

Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
