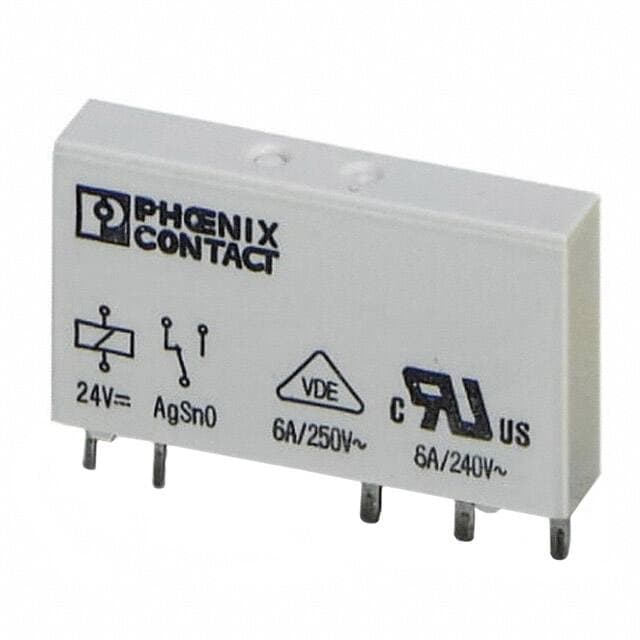

Phoenix 2961105
Phoenix 2961105

Phoenix 2961105

Manufacturer No:

2961105

Manufacturer:

Phoenix

Package:

SIP

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2961105 information

Phoenix 2961105 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 2961105.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Material
  • Silver Tin Oxide (AgSnO)
  • Mount
  • PCB, Plug-In, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • SIP
  • Number of Pins
  • 5
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • REL-MR
  • Published
  • 2004
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Termination
  • PC Pin
  • ECCN Code
  • EAR99
  • Voltage - Rated DC
  • 250V
  • Depth
  • 5mm
  • Current Rating
  • 6A
  • Reference Standard
  • CSA; UL; VDE
  • Termination Style
  • PC Pin
  • Voltage - Rated AC
  • 250V
  • Approval Agency
  • CSA, UL, VDE
  • Number of Contacts
  • 1
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 6A
  • Throw Configuration
  • SPDT
  • Max Voltage Rating (DC)
  • 250V
  • Contact Form
  • SPDT (1 Form C)
  • Relay Type
  • General Purpose
  • Contact Current(AC)-Max
  • 6A
  • Coil Resistance
  • 3.4kOhm
  • Operate Time
  • 5ms
  • Coil Voltage
  • 24VDC
  • Coil Type
  • Non Latching
  • Switching Voltage
  • 250VAC 250VDC -Max
  • Coil Current
  • 7mA
  • Release Time
  • 2.5ms
  • Power Consumption
  • 140W
  • Coil Power
  • 170mW
  • Contact/Output Supply Type
  • AC/DC
  • Relay Action
  • LATCHED
  • Coil Voltage (DC)
  • 24V
  • Coil/Input Supply Type
  • DC
  • PCB Hole Count
  • 5
  • Coil Voltage (AC)
  • 24V
  • Input Switching Control Type
  • Random

Download datasheets and manufacturer documentation for Phoenix 2961105.

Datasheets:

Description:

The Phoenix Contact Power Relay, Over 2 Amps 2961105 is an electromechanical relay with a 24VDC 3.39KOhm 6A SPDT (28mm 5mm 15mm) plug-in miniature relay. It is designed for use in a wide range of applications, including industrial automation, process control, and power distribution. The relay is UL, CSA, and VDE approved and is rated for up to 6A at 24VDC.

Features:

• 24VDC 3.39KOhm 6A SPDT (28mm 5mm 15mm) plug-in miniature relay
• UL, CSA, and VDE approved
• Rated for up to 6A at 24VDC
• Compact design for easy installation
• Reliable and durable construction
• Wide range of applications

Applications:

The Phoenix Contact Power Relay, Over 2 Amps 2961105 is suitable for a wide range of applications, including industrial automation, process control, and power distribution. It is ideal for use in applications where space is limited and reliability is essential.
