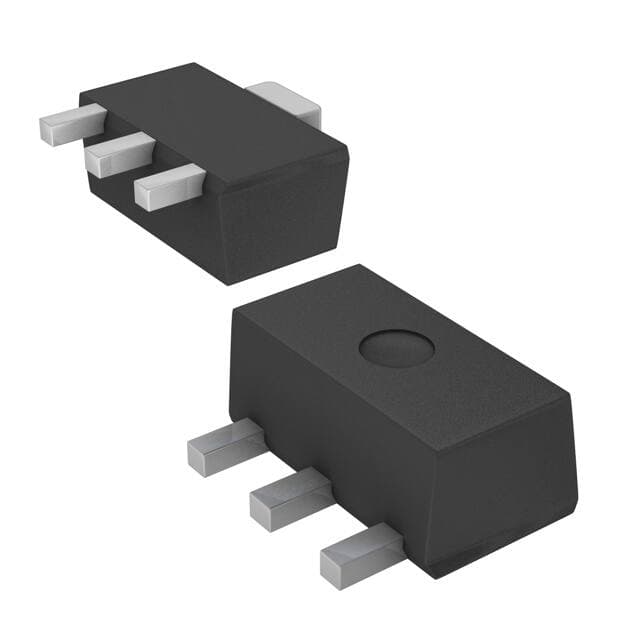

DIODES 2DB1188R-13
DIODES 2DB1188R-13

DIODES 2DB1188R-13

Manufacturer No:

2DB1188R-13

Manufacturer:

DIODES

Package:

TO-243AA

Description:

PNP -55°C~150°C TJ 100nA ICBO 1 Elements 3 Terminations SILICON PNP TO-243AA Tape & Reel (TR) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2DB1188R-13 information

DIODES 2DB1188R-13 technical specifications, attributes, parameters and parts with similar specifications to DIODES 2DB1188R-13.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-243AA
  • Number of Pins
  • 4
  • Weight
  • 51.993025mg
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 1W
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • 260
  • Frequency
  • 120MHz
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • 2DB1188
  • JESD-30 Code
  • R-PSSO-F3
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power Dissipation
  • 1W
  • Case Connection
  • COLLECTOR
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 120MHz
  • Polarity/Channel Type
  • PNP
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 32V
  • Max Collector Current
  • 2A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 180 @ 500mA 3V
  • Current - Collector Cutoff (Max)
  • 100nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 800mV @ 200mA, 2A
  • Collector Emitter Breakdown Voltage
  • 32V
  • Transition Frequency
  • 120MHz
  • Collector Emitter Saturation Voltage
  • 800mV
  • Max Breakdown Voltage
  • 32V
  • Collector Base Voltage (VCBO)
  • 40V
  • Emitter Base Voltage (VEBO)
  • 6V
  • hFE Min
  • 180
  • Height
  • 1.5mm
  • Length
  • 4.5mm

Download datasheets and manufacturer documentation for DIODES 2DB1188R-13.

Datasheets:

Environmental Information:

PCN Other:

2DB1188R-13 Overview


The DC current gain is the ratio of the base current to the collector current ?dc = Ic/Ib and the DC current gain for this device is 180 @ 500mA 3V.With a collector emitter saturation voltage of 800mV, it offers maximum design flexibility.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 800mV @ 200mA, 2A.If the emitter base voltage is kept at 6V, a high level of efficiency can be achieved.A transition frequency of 120MHz is present in the part.There is a breakdown input voltage of 32V volts that it can take.Collector current can be as low as 2A volts at its maximum.

2DB1188R-13 Features


the DC current gain for this device is 180 @ 500mA 3V
a collector emitter saturation voltage of 800mV
the vce saturation(Max) is 800mV @ 200mA, 2A
the emitter base voltage is kept at 6V
a transition frequency of 120MHz


2DB1188R-13 Applications


There are a lot of Diodes Incorporated
2DB1188R-13 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
