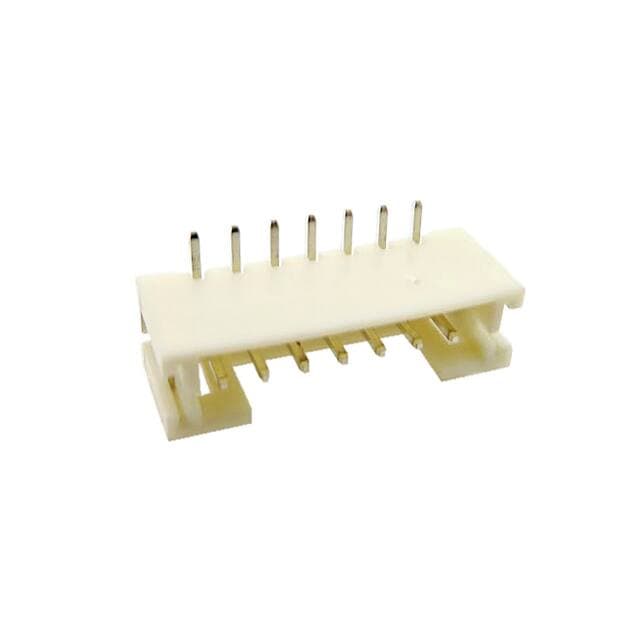

Adam Tech 2SH-C-07-TS-SMT

Manufacturer No:

2SH-C-07-TS-SMT

Manufacturer:

Package:

Description:

2SH Series 1-Row Header Solder Brass Bulk Surface Mount Tin Polyamide (PA46), Nylon 4/6 7-Position Board to Cable/Wire 0.260 6.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SH-C-07-TS-SMT information

Adam Tech 2SH-C-07-TS-SMT technical specifications, attributes, parameters and parts with similar specifications to Adam Tech 2SH-C-07-TS-SMT.

Type
Parameter

Contact Material
Brass

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Polyamide (PA46), Nylon 4/6

Mounting Option 1
LOCKING

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
2SH

Feature
Solder Retention

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
7

Number of Rows
1

Voltage - Rated
100VAC

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Contact Finish - Mating
Tin

Contact Type
Male Pin

Current Rating (Amps)
2A

Total Number of Contacts
7

Terminal Pitch
2.0066mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Reach Compliance Code
compliant

Pitch - Mating
0.079 2.00mm

Insulation Color
White

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
1

PCB Contact Pattern
RECTANGULAR

Body Depth
0.26 inch

Polarization Key
POLARIZED HOUSING

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adam Tech 2SH-C-07-TS-SMT.

2SH-C-07-TS-SMT Overview

Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Bulk case is used to package the product.A product of the 2SH Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS COMPLIANT, to name a few.A number of features make the Solder Retention feature more powerful.-25°C~85°C Operating Temperature is the default operating temperature for the device.

2SH-C-07-TS-SMT Features

2SH series

2SH-C-07-TS-SMT Applications

There are a lot of Adam Tech
2SH-C-07-TS-SMT Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
