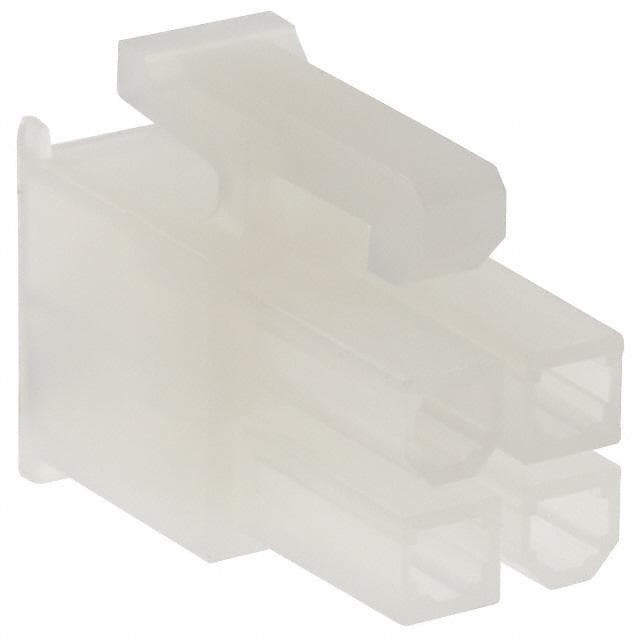

MOLEX 39-01-2040

Manufacturer No:

39-01-2040

Manufacturer:

MOLEX

Package:

Description:

Rectangular Power Connector, 4 Contact(s), Female, Crimp Terminal, Receptacle,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

39-01-2040 information

MOLEX 39-01-2040 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 39-01-2040.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
MOLEX LLC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.69.40.30

Factory Lead Time
12 Weeks, 2 Days

Samacsys Manufacturer
Molex

Additional Feature
MINI-FIT JR, COMPATIBLE CONTACTS: 39-00-0077; 39-00-0038, POLARIZED

Body Breadth
0.46 inch

Body Depth
0.77 inch

Body Length
0.378 inch

Body/Shell Style
RECEPTACLE

Connector Type
RECTANGULAR POWER CONNECTOR

Contact Arrangement
S0P4

Contact Finish Mating
NOT SPECIFIED

Contact Finish Termination
NOT APPLICABLE

Contact Gender
FEMALE

Contact Material
NOT SPECIFIED

Contact Resistance
10 mΩ

Contact Style
SQ PIN-SKT

DIN Conformance
NO

Dielectric Withstanding Voltage
1500VAC V

Filter Feature
NO

IEC Conformance
NO

Insertion Force-Max
6.672 N

Insulation Resistance
1000000000 Ω

Insulator Color
NATURAL

Insulator Material
POLYAMIDE66

MIL Conformance
NO

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Mounting Type
CABLE AND PANEL

Number Of Connectors
ONE

Number of Rows Loaded
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-40 °C

Option
GENERAL PURPOSE

Reference Standard
UL

Termination Type
CRIMP

Total Number of Contacts
4

UL Flammability Code
94V-2

Download datasheets and manufacturer documentation for MOLEX 39-01-2040.

Datasheets:

MOLE-S-A0005580238-1.pdf

Product Description:

The Molex 39-01-2040 is a miniature rectangular connector housing designed for general-purpose applications. This connector features a natural color, nylon shell, and a female socket connector type with brass contacts. The contacts are designed with a square pin-sketched (SQ PIN-SKT) style and have a contact resistance of 10mOhm. The connector is rated for a maximum operating temperature of 105°C and a minimum operating temperature of -40°C.

Features:

MINI-FIT JR design for compact and reliable connections
Compatible with contacts 39-00-0077 and 39-00-0038
Polarized design for secure mating
CSA, TUV, and UL approved
Lead-free and RoHS compliant
Low halogen content
Non-glow wire compliant
UL94 V-2 flammability rating

Applications:

Primary applications: General-purpose connectors for industrial, commercial, and consumer electronics
Secondary applications: Medical devices, automotive, and aerospace industries

Alternative Parts:

39-00-0077
39-00-0038

Embedded Modules:

Various industrial control systems
Medical devices
Automotive electronics
Aerospace systems

FAQs:

Q: What is the maximum operating temperature of this connector? A: The maximum operating temperature is 105°C.

Q: Is this connector compatible with other Molex contacts? A: Yes, it is compatible with contacts 39-00-0077 and 39-00-0038.

Q: What is the contact resistance of this connector? A: The contact resistance is 10mOhm.

Q: Is this connector lead-free? A: Yes, it is lead-free and RoHS compliant.

Q: What is the flammability rating of this connector? A: The flammability rating is UL94 V-2.

Q: Is this connector suitable for medical devices? A: Yes, it is suitable for medical devices due to its low halogen content and compliance with medical industry standards.

Q: What is the packaging option for this connector? A: The packaging option is bulk.
