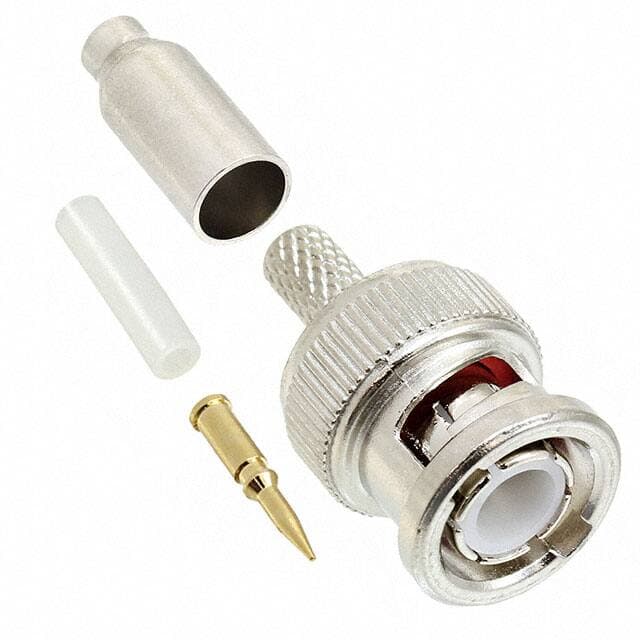

TE Connectivity 5-1634500-1

Manufacturer No:

5-1634500-1

Manufacturer:

TE Connectivity

Package:

316

Description:

Plug, Male Pin Bayonet Lock 50Ohm Bulk BNC Crimp 1 Port Polymethylpentene (PMP) -55°C~85°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5-1634500-1 information

TE Connectivity 5-1634500-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5-1634500-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
14 Weeks

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
316

Insulation Material
Polymethylpentene

Dielectric Material
Polymethylpentene (PMP)

Body Material
Zinc Alloy

Center Contact Plating
Gold

Center Contact Material
Brass

Operating Temperature
-55°C~85°C

Packaging
Bulk

Series
ZDC, Greenpar

Published
2002

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Plug, Male Pin

Number of Positions
1

Gender
Male

Fastening Type
Bayonet Lock

Voltage - Rated DC
500V

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Total Number of Contacts
1

Orientation
Straight

Depth
13.7mm

Frequency
4GHz

Reliability
COMMERCIAL

Housing Color
Silver

Polarity
Normal

Contact Style
COAX

Contact Resistance
1.5mOhm

Insulation Resistance
5GOhm

ELV
Compliant

Impedance
50Ohm

Connector Style
BNC

Number of Ports
1

Durability
50 Cycles

Sealable
Yes

Mating Cycles
500

Contact Termination
Crimp

Includes
4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve

Insertion Loss
0.2dB

Body Finish
Nickel

Download datasheets and manufacturer documentation for TE Connectivity 5-1634500-1.

5-1634500-1 Overview

The product comes in a package of Plug, Male Pin.This device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.ZDC, Greenpar Series product.Packaged with the 316, there is a device enclosed.For managing a variety of tasks, it has 1 ports.Cable, Free Hanging is mounting the part.Running in -55°C~85°C Operating Temperature.In order to perform efficiently, it should be used with a 4GHz frequency.

5-1634500-1 Features

ZDC, Greenpar series

5-1634500-1 Applications

There are a lot of TE Connectivity AMP Connectors
5-1634500-1 Coaxial Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
