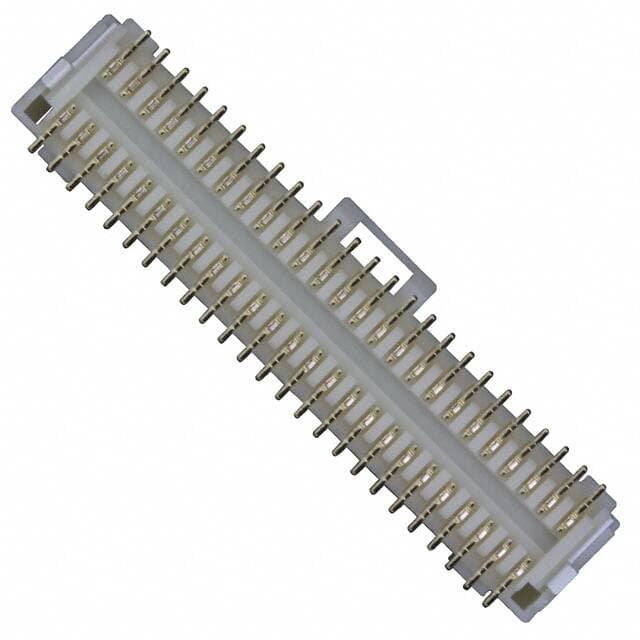

MOLEX 501190-5017

Manufacturer No:

501190-5017

Manufacturer:

Package:

Description:

Pico-Clasp 501190 Series 2-Row Header Solder Phosphor Bronze Cut Tape (CT) Surface Mount Gold Polyamide (PA), Nylon Board to Cable/Wire 0.213 5.40mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

501190-5017 information

MOLEX 501190-5017 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 501190-5017.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Housing Material
Nylon

Packaging
Cut Tape (CT)

Series
Pico-Clasp 501190

Published
2007

JESD-609 Code
e4

Feature
Pick and Place, Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
General Purpose

Number of Rows
2

Voltage - Rated
50V

HTS Code
8536.69.40.40

Voltage - Rated DC
50V

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Orientation
Vertical

Depth
7.27mm

Insulation Height
0.213 5.40mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.039 1.00mm

Number of Conductors
ONE

Reliability
COMMERCIAL

Row Spacing - Mating
0.105 (2.66mm)

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Lead Pitch
1mm

Number of Contacts
50

PCB Contact Pattern
RECTANGULAR

Download datasheets and manufacturer documentation for MOLEX 501190-5017.

Datasheets:

molex-5011905017-datasheets-7187.pdf

molex-5013340100-datasheets-5107.pdf

501190-5017 Overview

It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Cut Tape (CT) case is used.It belongs to the Pico-Clasp 501190 Series of products.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -40°C.General Purpose is a possible application for the device.Its Pick and Place, Solder Retention feature renders it more powerful in many ways.The part is mounted by Surface Mount.
