Manufacturer No:

5019530507

Manufacturer:

MOLEX

Package:

Description:

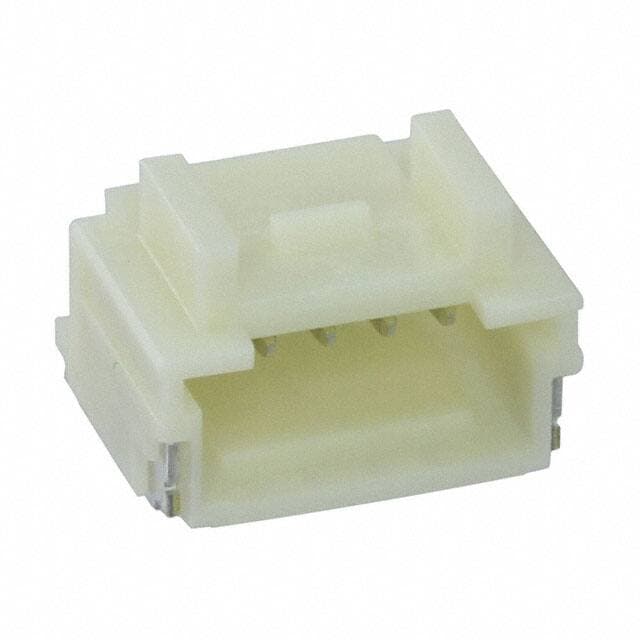

Pico-Clasp 501953 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.185 4.70mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5019530507 information

MOLEX 5019530507 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5019530507.

  • Type
  • Parameter
  • Factory Lead Time
  • 26 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mounting Type
  • Surface Mount, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA), Nylon
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Pico-Clasp 501953
  • Published
  • 2007
  • JESD-609 Code
  • e3
  • Feature
  • Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 5
  • Applications
  • General Purpose
  • Number of Rows
  • 1
  • Fastening Type
  • Locking Ramp
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Total Number of Contacts
  • 5
  • Insulation Height
  • 0.185 4.70mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.039 1.00mm
  • Insulation Color
  • Natural
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 1
  • PCB Contact Pattern
  • RECTANGULAR
  • Contact Gender
  • FEMALE
  • Operating Temperature (Min)
  • -40°C
  • UL Flammability Code
  • 94V-0
  • Body Depth
  • 0.232 inch
  • Contact Resistance
  • 20mOhm
  • Mating Contact Pitch
  • 0.039 inch
  • Contact Finish Thickness - Mating
  • 39.4μin 1.00μm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for MOLEX 5019530507.

Datasheets:

5019530507 Overview


The product comes in a package of Header.Surface Mount, Right Angle is the mount type.Tape & Reel (TR) cases are used to package the product.This product is in the Pico-Clasp 501953 Series.There's an application for the device called General Purpose.As a result of its Solder Retention feature, it possesses a great deal of power.
