Manufacturer No:

5024306410

Manufacturer:

MOLEX

Package:

Description:

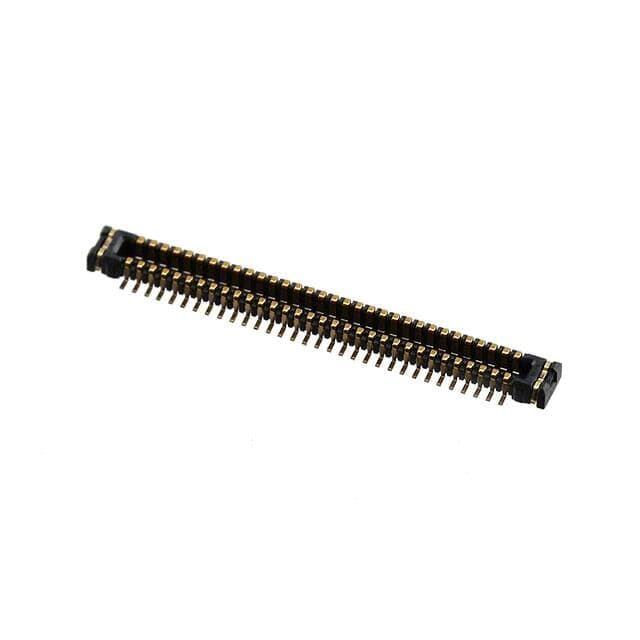

Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 64 Positions SlimStack 502430 Gold PHOSPHOR BRONZE

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5024306410 information

MOLEX 5024306410 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 5024306410.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • PHOSPHOR BRONZE
  • Mounting Type
  • Surface Mount
  • Insulation Material
  • GLASS FILLED LIQUID CRYSTAL POLYMER
  • Mounting Option 1
  • LOCKING
  • Board Mounting Option
  • FITTING NAIL
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SlimStack 502430
  • Published
  • 2015
  • JESD-609 Code
  • e4
  • Feature
  • Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Plug, Outer Shroud Contacts
  • Number of Positions
  • 64
  • Number of Rows
  • 2
  • Additional Feature
  • SLIMSTACK, LOW PROFILE
  • HTS Code
  • 8536.69.40.40
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.016 0.40mm
  • Total Number of Contacts
  • 64
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.593 inch
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Operating Temperature (Max)
  • 85°C
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Body Breadth
  • 0.081 inch
  • Contact Gender
  • MALE
  • UL Flammability Code
  • 94V-0
  • Body Depth
  • 0.031 inch
  • Rated Current (Signal)
  • 0.3A
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 80mOhm
  • Insulation Resistance
  • 100000000Ohm
  • PCB Contact Row Spacing
  • 1.7018 mm
  • Durability
  • 30 Cycles

Download datasheets and manufacturer documentation for MOLEX 5024306410.

Datasheets:

PCN Obsolescence/ EOL:

5024306410 Description


5024306410 is a SlimStack 0.635mm Floating Board-to-Board Connector. SlimStack Board-to-Board Hybrid Power Connector GCB7X (0.40mm pitch) achieves up to 15.0A of power and electrical reliability in an ultracompact design for battery and other power applications. SlimStack 5G mmWave RF Flex-to-Board and Board-to-Board connectors offer reliable and stable performance with signal integrity (SI) for ultra-low profile and extreme RF applications.
