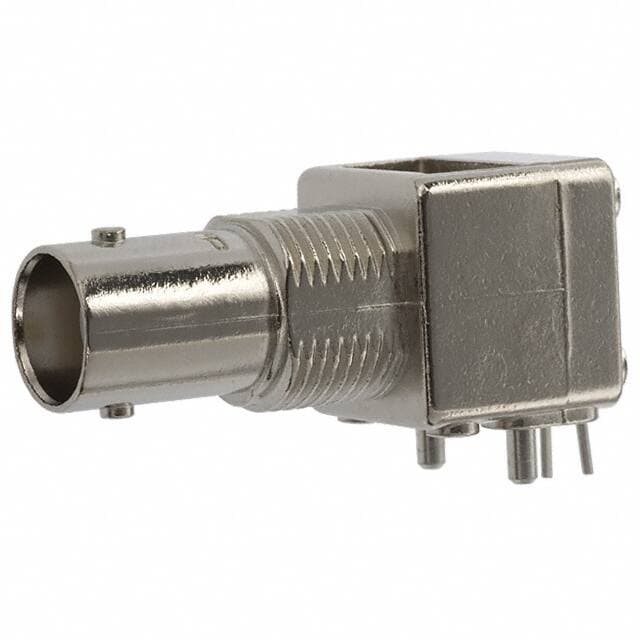

TE Connectivity 5227677-1

Manufacturer No:

5227677-1

Manufacturer:

TE Connectivity

Package:

Description:

Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder 1 Port Polymethylpentene (PMP) -55°C~85°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5227677-1 information

TE Connectivity 5227677-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5227677-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
4 Weeks

Contact Material
Bronze

Mount
Panel

Mounting Type
Panel Mount, Through Hole, Right Angle

Mounting Feature
Bulkhead - Front Side Nut

Insulation Material
Polymethylpentene

Dielectric Material
Polymethylpentene (PMP)

Body Material
Zinc

PCB Mounting Orientation
Right Angle

Center Contact Plating
Gold

Center Contact Material
Phosphor Bronze

Operating Temperature
-55°C~85°C

Packaging
Bulk

Published
2003

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Through Hole

Connector Type
Jack, Female Socket

Number of Positions
1

Gender
Female

Voltage - Rated
500V

Fastening Type
Bayonet Lock

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Total Number of Contacts
1

Orientation
Right Angle

Depth
14.76mm

Frequency
4GHz

Body Breadth
0.625 inch

Housing Color
Silver

Polarity
Normal, Standard

Contact Style
COAX

Insulation Resistance
5GOhm

Polarization Key
POLARIZED HOUSING

Impedance
50Ohm

Connector Style
BNC

Number of Ports
1

Sealable
No

Mating Cycles
500

Contact Termination
Solder

Body Finish
Nickel

Height
15.88mm

Length
35.57mm

Download datasheets and manufacturer documentation for TE Connectivity 5227677-1.

Datasheets:

teconnectivityampconnectors-52276771-datasheets-6288.pdf

5227677-1 Overview

The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount, Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.The device has 1 ports that can be used to manage a variety of tasks.Part Panel is mounted to the part.As a result, the device runs at -55°C~85°C Operating Temperature.This device is extremely efficient when operated at a frequency of 4GHz.
