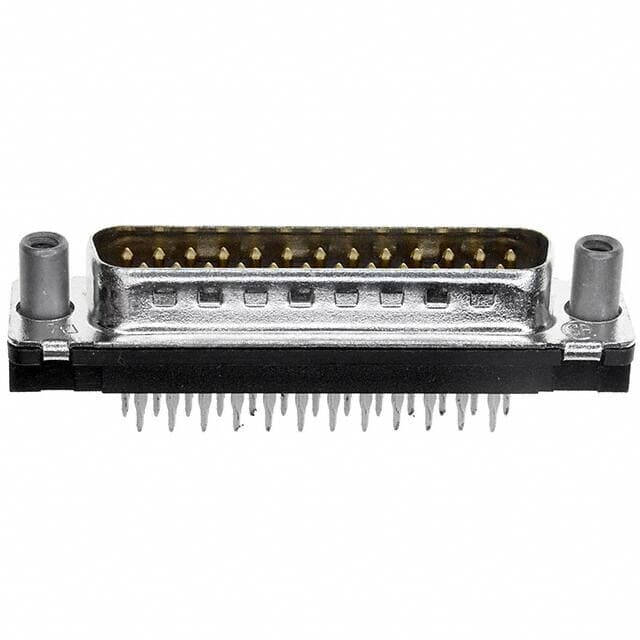

TE Connectivity 5748146-6

Manufacturer No:

5748146-6

Manufacturer:

TE Connectivity

Package:

Metal

Description:

AMPLIMITE HD-20 Series D-Sub Plug, Male Pins 25-Position Male Signal Press-Fit 3 DB B Through Hole Copper Alloy Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

5748146-6 information

TE Connectivity 5748146-6 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 5748146-6.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
19 Weeks

Contact Material
Copper Alloy

Contact Plating
Gold

Mount
Press Fit, Through Hole

Mounting Type
Through Hole

Package / Case
Metal

Contact Shape
Round

Shell Material
Steel

Housing Material
Nylon

Body Material
Metal

Shell Material, Finish
Steel, Tin Plated

PCB Mounting Orientation
Vertical

PCB Mount Retention
With

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
AMPLIMITE HD-20

Published
1999

Feature
Grounding Indents

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
25

Termination
Press-Fit

Connector Type
Plug, Male Pins

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
2

Gender
Male

Contact Type
Signal

Pitch
2.7432mm

Orientation
Vertical

Depth
12.55mm

Contact Finish
Gold

Number of Contacts
25

Housing Color
Black

Lead Length
5.7912mm

Row Spacing
2.8448 mm

Flange Feature
Mating Side, Female Screwlock (4-40)

ELV
Compliant

Plating
Tin

Connector Style
D-Sub

Number of Ports
1

Sealable
No

Circuit Application
Signal

Shell Size, Connector Layout
3 DB B

Hole Diameter
3.18 mm

Download datasheets and manufacturer documentation for TE Connectivity 5748146-6.

Datasheets:

teconnectivityampconnectors-57481464-datasheets-3270.pdf

5748146-6 Overview

Packaging is Plug, Male Pins.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPLIMITE HD-20 Series.If the temperature is below 105°C, it's best to use it.-55°C is the minimum temperature for this device.This package contains an enclosed device in the Metal.A variety of tasks can be performed using its 1 ports.Several benefits come from the Grounding Indents feature.There is a mounting hole at Press Fit, Through Hole.A chip with 25 terminations can be found.Devices operate at -55°C~105°C operating temperatures.

5748146-6 Features

25 basic kinds of terminations
AMPLIMITE HD-20 series

5748146-6 Applications

There are a lot of TE Connectivity AMP Connectors
5748146-6 D-Sub Connectors applications.

Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
