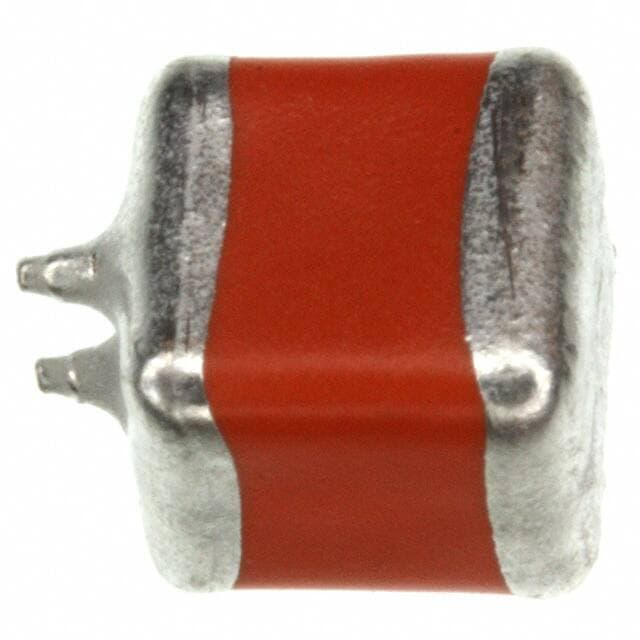

VISHAY 597D227X9016E2T

Manufacturer No:

597D227X9016E2T

Manufacturer:

VISHAY

Package:

, 3017

Description:

CAPACITOR, TANTALUM, SOLID, POLARIZED, 16 V, 220 uF, SURFACE MOUNT, 3017, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

597D227X9016E2T information

VISHAY 597D227X9016E2T technical specifications, attributes, parameters and parts with similar specifications to VISHAY 597D227X9016E2T.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
, 3017

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Samacsys Manufacturer
Vishay

Additional Feature
ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

Capacitance
220 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (DRY/SOLID)

ESR
60 mΩ

Height
4 mm

JESD-609 Code
e3

Leakage Current
0.035 mA

Length
7.6 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
10%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Packing Method
TR, Embossed Plastic, 7 Inch

Polarity
POLARIZED

Positive Tolerance
10%

Rated (DC) Voltage (URdc)
16 V

Ripple Current
920 mA

Size Code
3017

Surface Mount
YES

Tan Delta
0.08

Terminal Finish
MATTE TIN OVER NICKEL

Terminal Shape
WRAPAROUND

Width
4.4 mm

Download datasheets and manufacturer documentation for VISHAY 597D227X9016E2T.

Datasheets:

VISH-S-A0015600601-1.pdf

597D227X9016E2T Overview

In an electronic circuit consisting of a resistor and an ideal (perfect) capacitor, equivalent series resistance (ESR), or internal resistance, is the loss of useful energy.There is a leakage current of 35μA in this capacitor.Whenever AC is applied through a capacitor, the dissipation factor is 8 %.An insulating oil's tan delta measures its electrical dielectric properties, and its tan delta is 0.08.

597D227X9016E2T Features

a leakage current of 35μA in this capacitor
the dissipation factor is 8 %
its tan delta is 0.08

597D227X9016E2T Applications

There are a lot of Vishay Sprague
597D227X9016E2T applications of tantalum capacitors.

Telecom infrastructure
Consumer
Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
