Manufacturer No:

6469081-1

Manufacturer:

TE Connectivity

Package:

Description:

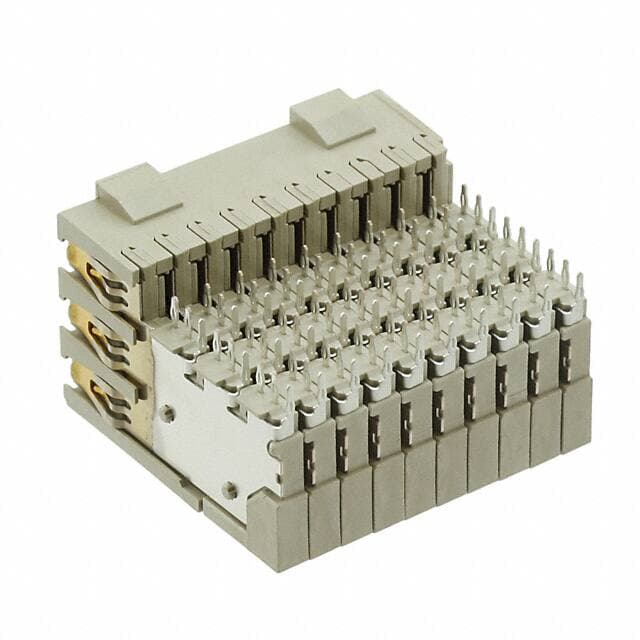

Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit Gold 30.0?in 0.76?m 60 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

6469081-1 information

TE Connectivity 6469081-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 6469081-1.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Copper, Nickel
  • Mount
  • Edge, Through Hole
  • Mounting Type
  • Board Edge, Through Hole, Right Angle
  • Housing Material
  • Polyester
  • PCB Mounting Orientation
  • Right Angle
  • Operating Temperature
  • -65°C~105°C
  • Packaging
  • Tube
  • Series
  • Z-PACK HM-Zd
  • Published
  • 2004
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 60
  • Number of Rows
  • 6
  • Gender
  • Receptacle
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.700A
  • Pitch
  • 0.098 2.50mm
  • Total Number of Contacts
  • 60
  • Orientation
  • Right Angle
  • Shielding
  • Shielded
  • Depth
  • 24.4mm
  • Number of Positions Loaded
  • All
  • Current Rating
  • 700mA
  • Number of Conductors
  • ONE
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 9
  • PCB Contact Pattern
  • RECTANGULAR
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Grey
  • Operating Supply Voltage
  • 250V
  • Contact Style
  • SQ PIN-SKT
  • Contact Resistance
  • 50mOhm
  • Row Spacing
  • 1.5 mm
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 700mA

Download datasheets and manufacturer documentation for TE Connectivity 6469081-1.

Datasheets:

PCN Design/Specification:

6469081-1 Overview


The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Z-PACK HM-Zd Series.Part Edge, Through Hole is mounted to the part.As a result, the device runs at -65°C~105°C Operating Temperature.A supply voltage of 250V is required to operate this Backplane Connector.

6469081-1 Features


Z-PACK HM-Zd series


6469081-1 Applications


There are a lot of TE Connectivity AMP Connectors
6469081-1 Backplane Connectors applications.
