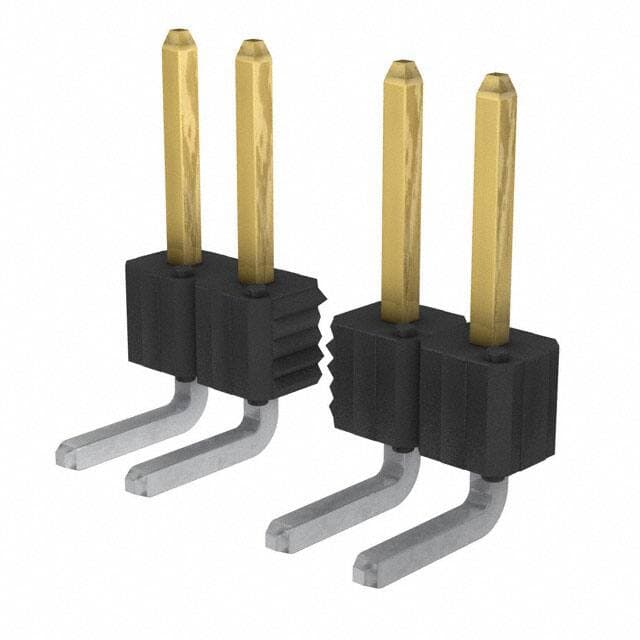

Amphenol 68016-110HLF

Manufacturer No:

68016-110HLF

Manufacturer:

Package:

Description:

BERGSTIK® II Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold or Gold, GXT™ 10-Position Board to Board 0.095 2.41mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68016-110HLF information

Amphenol 68016-110HLF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 68016-110HLF.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Housing Material
Thermoplastic

Packaging
Bulk

Series
BERGSTIK® II

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Max Operating Temperature
105°C

Min Operating Temperature
-65°C

Color
Black

Number of Rows
1

Gender
Male

Voltage - Rated
1.5kV

Fastening Type
Push-Pull

Contact Finish - Mating
Gold or Gold, GXT™

Contact Type
Male Pin

Orientation
Right Angle

Depth
9.9mm

Insulation Height
0.095 2.41mm

Style
Board to Board

Number of Positions Loaded
All

Current Rating
5A

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Contact Length - Post
0.120 3.05mm

Shrouding
Unshrouded

Number of Contacts
10

Contact Length - Mating
0.230 5.84mm

Contact Gender
Male

Housing Color
Black

Lead Length
3.05mm

Insulation Resistance
5GOhm

Max Voltage Rating (AC)
1.5kV

Mating Post Length
5.84mm

Length
25.4mm

Contact Finish Thickness - Mating
30.0μin 0.76μm

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Amphenol 68016-110HLF.

68016-110HLF Overview

Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the BERGSTIK® II Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -65°C for this device.In this case, Through Hole mounts the part.

68016-110HLF Features

BERGSTIK® II series

68016-110HLF Applications

There are a lot of Amphenol ICC (FCI)
68016-110HLF Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
