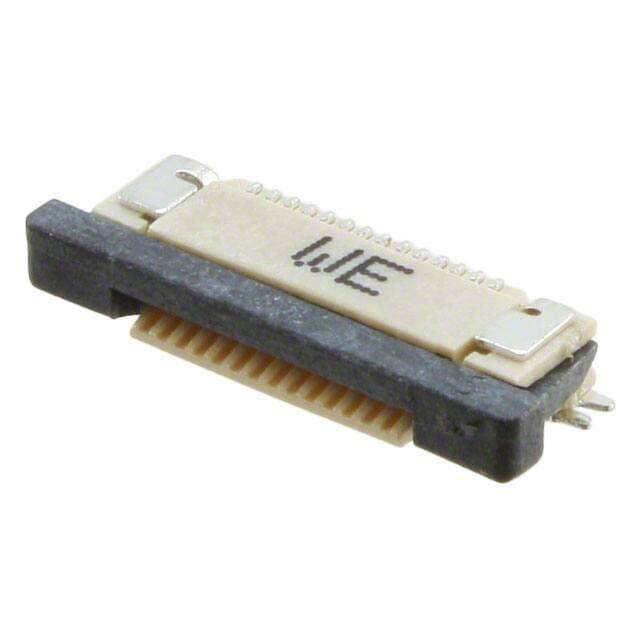

WURTH 68711414522
WURTH 68711414522

WURTH 68711414522

Manufacturer No:

68711414522

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 14 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

68711414522 information

WURTH 68711414522 technical specifications, attributes, parameters and parts with similar specifications to WURTH 68711414522.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 14
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 14
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Horizontal
  • Contact Finish
  • Tin
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 14
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Bottom
  • Length
  • 13.4mm
  • Width
  • 2.1mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.079 2.00mm
  • FFC, FCB Thickness
  • 0.30mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 68711414522.

Datasheets:

Environmental Information:

68711414522 Overview


Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the WR-FPC Series of products.14 pins are provided on the device.Whenever it's below 85°C, it's best to use it.The device must operate at a temperature of -25°C at all times.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.Surface Mount mounts the part.A voltage of 50V is required to operate this memory.There is no operating temperature for the device.

68711414522 Features


WR-FPC series


68711414522 Applications


There are a lot of Würth Elektronik
68711414522 FFC, FPC (Flat Flexible) Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
