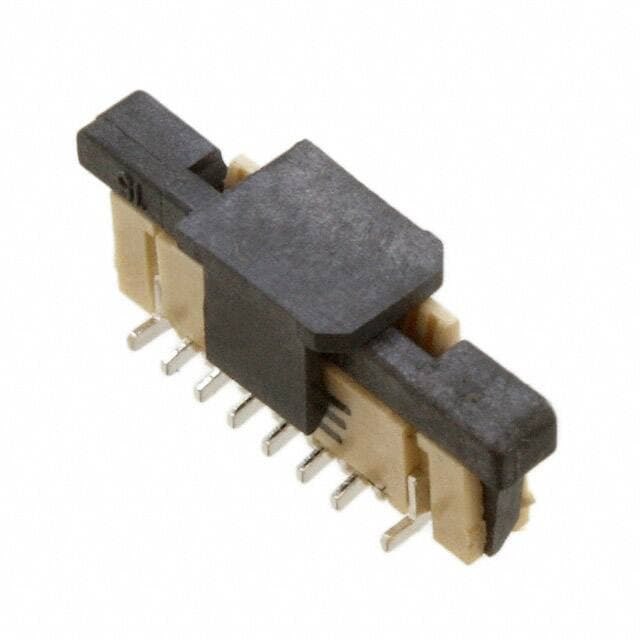

WURTH 687312124422
WURTH 687312124422

WURTH 687312124422

Manufacturer No:

687312124422

Manufacturer:

WURTH

Package:

Description:

WR-FPC Series FPC Contacts, Vertical - 1 Sided Cut Tape (CT) 0.020 0.50mm Solder 12 Positions Surface Mount Tin -25°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

687312124422 information

WURTH 687312124422 technical specifications, attributes, parameters and parts with similar specifications to WURTH 687312124422.

  • Type
  • Parameter
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 12
  • Housing Material
  • Liquid Crystal Polymer (LCP)
  • Actuator Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • WR-FPC
  • Feature
  • Zero Insertion Force (ZIF)
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 12
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 2
  • Gender
  • Receptacle
  • Voltage - Rated
  • 50V
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Orientation
  • Vertical
  • Current Rating
  • 500mA
  • Lead Pitch
  • 500?m
  • Number of Contacts
  • 12
  • Housing Color
  • Ivory
  • Operating Supply Voltage
  • 50V
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 100MOhm
  • Mating Cycles
  • 25
  • Flat Flex Type
  • FPC
  • Connector/Contact Type
  • Contacts, Vertical - 1 Sided
  • Cable End Type
  • Tapered
  • Locking Feature
  • Slide Lock
  • Actuator Color
  • Black
  • Contact Location
  • Side
  • Length
  • 12.4mm
  • Width
  • 3.5mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Height Above Board
  • 0.169 4.30mm
  • FFC, FCB Thickness
  • 0.29mm ~ 0.34mm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 687312124422.

Datasheets:

Environmental Information:

687312124422 Overview


The device's mounting type is Surface Mount.In order to package the product, a Cut Tape (CT) case is used.It belongs to the WR-FPC Series of products.The device is equipped with 12 pins.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -25°C.Its Zero Insertion Force (ZIF) feature renders it more powerful in many ways.The part is mounted by Surface Mount.This memory's operating supply voltage is 50V.The device runs in -25°C~85°C Operating Temperature.

687312124422 Features


WR-FPC series


687312124422 Applications


There are a lot of Würth Elektronik
687312124422 FFC, FPC (Flat Flexible) Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
