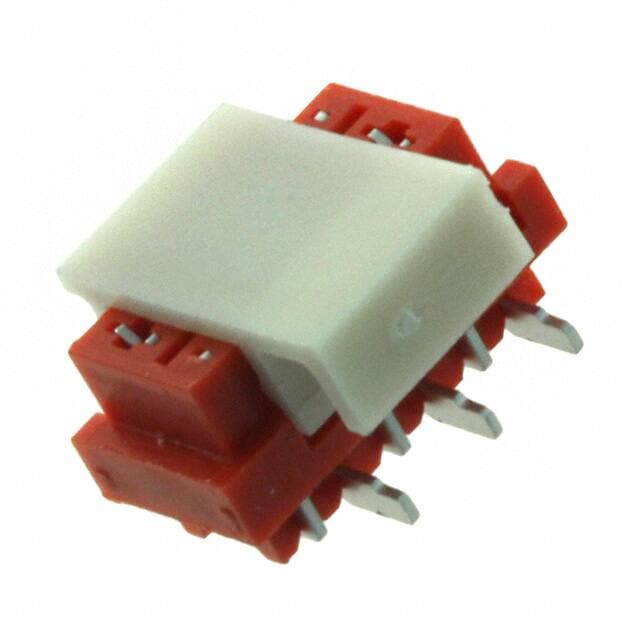

WURTH 690367280676
WURTH 690367280676

WURTH 690367280676

Manufacturer No:

690367280676

Manufacturer:

WURTH

Package:

Description:

2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Tin Polyamide (PA6T), Nylon 6T 6 Positions Forked

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

690367280676 information

WURTH 690367280676 technical specifications, attributes, parameters and parts with similar specifications to WURTH 690367280676.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Contact Material
  • Phosphor Bronze
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Number of Pins
  • 6
  • Contact Shape
  • Rectangular
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Housing Material
  • Polyamide
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • WR-MM
  • Feature
  • Pick and Place
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle
  • Number of Positions
  • 6
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Red
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 100VAC
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Forked
  • Current Rating (Amps)
  • 1.5A per Contact
  • Pitch
  • 1.27mm
  • Orientation
  • Right Angle
  • Insulation Height
  • 0.207 5.25mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1.5A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Red
  • Row Spacing - Mating
  • 0.059 (1.50mm)
  • Lead Pitch
  • 2.54mm
  • Number of Contacts
  • 6
  • Contact Finish - Post
  • Tin
  • Contact Gender
  • Female
  • Operating Supply Voltage
  • 100V
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 1GOhm
  • Insulation
  • Insulated
  • Height
  • 5.75mm
  • Length
  • 9.62mm
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for WURTH 690367280676.

Datasheets:

Environmental Information:

690367280676 Overview


This product is packaged in a Receptacle cartonThis device's mounting type is Surface Mount.It's packaged in a Tape & Reel (TR) case.WR-MM Series product.You'll find 6 pins on the device.The best time to use this device is when the temperature is below 105°C.It has to be at least -40°C degrees to work.Its Pick and Place feature makes it more powerful in a number of ways.Surface Mount is mounting the part.Its operating voltage is 100V.Running in -40°C~105°C Operating Temperature.

690367280676 Features


WR-MM series


690367280676 Applications


There are a lot of Würth Elektronik
690367280676 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
