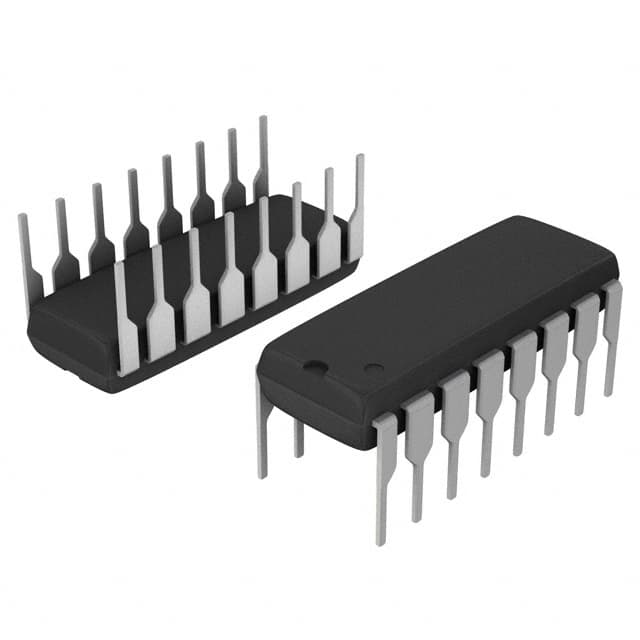

Rochester 74F162APC

Manufacturer No:

74F162APC

Manufacturer:

Rochester

Package:

16-DIP (0.300, 7.62mm)

Description:

1 Element 5V TTL DUAL Counters & Dividers 74F Series 16 Pins Up Positive Edge 16-DIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74F162APC information

Rochester 74F162APC technical specifications, attributes, parameters and parts with similar specifications to Rochester 74F162APC.

Type
Parameter

Mounting Type
Through Hole

Package / Case
16-DIP (0.300, 7.62mm)

Surface Mount
NO

Operating Temperature
0°C~70°C

Packaging
Tube

Series
74F

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Additional Feature
TCO OUTPUT

Technology
TTL

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Number of Elements
1

Supply Voltage-Max (Vsup)
5.5V

Reset
Asynchronous

Family
F/FAST

Logic Type
Counter, Decade

Number of Bits per Element
4

Trigger Type
Positive Edge

fmax-Min
80 MHz

Count Rate
120MHz

Timing
Synchronous

Height Seated (Max)
5.08mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester 74F162APC.

Datasheets:

rochesterelectronicsllc-74f162apc-datasheets-4299.pdf

74F162APC Overview

In the 16-DIP (0.300, 7.62mm)package, it is supplied. In order to configure it, it uses 16terminations. As a result of the supply voltage of 0, 5Vcan operate in a fully flexible manner. There are wires connecting 1elements. The total number of component pins is 16. Packaging is based on Tube. In this case, it appears as a member of the family [0]. Due to its membership in the 74Fseries, it is suitable for a variety of applications. In this case, the logic type is set to [0]. 0°C~70°Cshould be set as the operating temperature. In this case, it is mounted with a Through Holetype. In the case of a supply voltage of [0], it operates more reliably. The array contains elements that store 4bits each. It is possible for the result to be yesin Pbfree code. It is important to note that in regards to this electronic device, TCO OUTPUTis an extremely significant feature. There is 5.5V maximum supply voltage (Vsup) allowed.

74F162APC Features

Embedded in the 16-DIP (0.300, 7.62mm) package
4 bits per element
TCO OUTPUT

74F162APC Applications

There are a lot of Rochester Electronics, LLC
74F162APC Counters & Dividers applications.

Digital multiplexing and demultiplexing
Signal gating
Frequency dividing circuits
Time delay circuits
Communications Digital Frequency Synthesizers;
VHF, UHF, FM, AM, etc.
Fixed or Programmable Frequency Division
Time Out Timer for Consumer-Application Industrial Controls
Timing applications
Clocks
