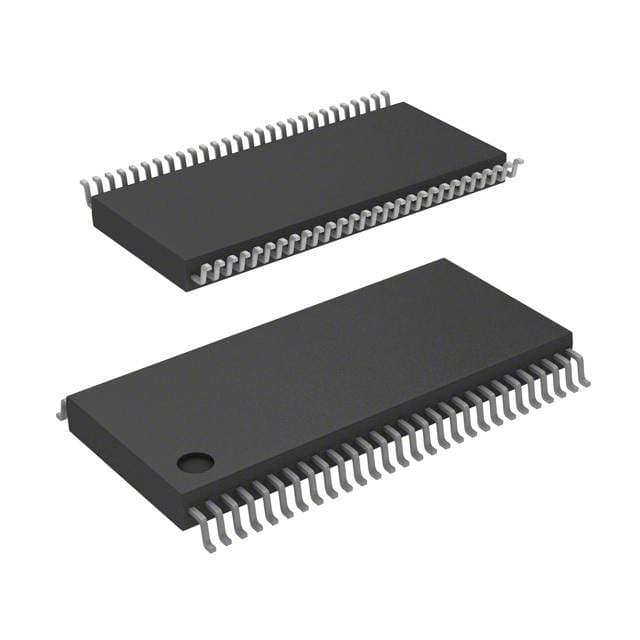

Renesas 74FCT162501CTPAG

Manufacturer No:

74FCT162501CTPAG

Manufacturer:

Renesas

Package:

TSSOP

Description:

18 Bit 5V Universal Bus Functions 56 Pin 0.5mm 5V TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74FCT162501CTPAG information

Renesas 74FCT162501CTPAG technical specifications, attributes, parameters and parts with similar specifications to Renesas 74FCT162501CTPAG.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
56

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

Packing Method
TUBE

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
56

Operating Supply Voltage
5V

Number of Elements
1

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Number of Channels
18

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Ports
2

Number of Bits
18

Propagation Delay
5.2 ns

Quiescent Current
500?A

Family
FCT

Logic Function
Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Max I(ol)
0.024 A

Prop. Delay@Nom-Sup
4.3 ns

Trigger Type
POSITIVE EDGE

High Level Output Current
24mA

Low Level Output Current
24mA

Control Type
INDEPENDENT CONTROL

Translation
N/A

Download datasheets and manufacturer documentation for Renesas 74FCT162501CTPAG.

74FCT162501CTPAG Overview

There is an embedded version of it in the TSSOP package. There are a number of termination types, including 56 terminations, which is the term that refers to the practice of terminating a transmission line with a device that matches the characteristic impedance of the line. In order to maintain normal operation of the device, the supply voltage should remain above 5V. The 56 pin count is provided. 18 Bits were used in the design of this electronic part. The 2 termination is a practice in which a transmission line is terminated with an impedance matching device at the end of the line in order to match the characteristic impedance of the line. Mounted in the way of Surface Mount is this electronic part. 56 pins are used in the design. It is a member of the FCT family of electronic devices. The power source is 5V. The element consists of 1 elements in total. POSITIVE EDGE is the trigger it is configured with. As a result of its reliable performance, this device is well suited for TUBE. Furthermore, it has the characteristic of WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION as well. Channel growth is strong/weak according to the following indicator: 18. It operates on a 5V supply voltage. It is in this case that 500?A of quiescent current is consumed without being affected by external factors in any way. A minimal supply voltage of 4.5V is required for it to operate. As a result, it supports the maximum supply voltage of 5.5V. There is a high level output current called 24mA. A higher operating temperature is recommended than -40°C. Operating temperatures should ideally be lower than 85°C.

74FCT162501CTPAG Features

TSSOP package
56 pin count
56 pins
5V power supplies
1 elements

74FCT162501CTPAG Applications

There are a lot of Integrated Device Technology (IDT)
74FCT162501CTPAG Universal Bus Functions applications.

Instrumentation Systems
Air conditioner
Home theater
Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
