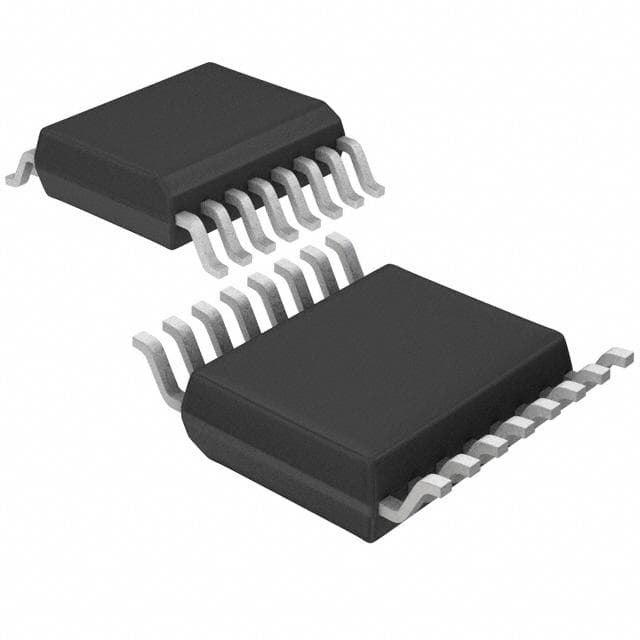

Renesas 74FCT257DTQG

Manufacturer No:

74FCT257DTQG

Manufacturer:

Renesas

Package:

QSOP

Description:

16 Terminations 16 Pin Signal switch 4 Outputs 4 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74FCT257DTQG information

Renesas 74FCT257DTQG technical specifications, attributes, parameters and parts with similar specifications to Renesas 74FCT257DTQG.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
16

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer/Demultiplexers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
5V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Number of Outputs
4

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Load Capacitance
50pF

Quiescent Current
10?A

Family
FCT

Logic Function
Multiplexer, Mux

Number of Inputs
8

Output Characteristics
3-STATE

Supply Type
Single

Output Polarity
TRUE

Prop. Delay@Nom-Sup
3.9 ns

High Level Output Current
48mA

Propagation Delay (tpd)
3.9 ns

Low Level Output Current
15mA

Independent Circuits
1

Height
1.47mm

Length
4.9mm

Width
3.8mm

Thickness
1.47mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 74FCT257DTQG.

Datasheets:

integrateddevicetechnology-74fct257dtqg-datasheets-8494.pdf

74FCT257DTQG Overview

As a means of saving space, digital switch is provided in the QSOP.Its basic configuration includes terminations in the 16 range.The multiplexer is supplied with 5V voltage.A component pin count of 16 is found on this turn signal switch.As a result, GULL WING represents the end of the conductors.This supply type employs Single.A total of 16 pins are configured on this board.The multiplexer ic is mounted in the direction of Surface Mount.The logic switch is a member of the FCT family.For mux switch's normal operation, power supply 5V is provided.For the turn signal switch's operation, there are 4 outputs.Multiplexer/Demultiplexers is a category for the digital switch ics.It consumes 10?A current of multiplexer ic without external influences.If the supply voltage is 5V, reliable performance of the multiplexers can be achieved.The multiplexer is equipped with 8 inputs.In this case, operating this signal switch at 85°C is acceptable.Keeping the temperature of the multiplexer at -40°C is the minimum operating temperature.Device specifications specify 5.25V as the maximum supply voltage for the signal switches.Typical device specifications specify a voltage supply of 4.75V for the digital swith.

74FCT257DTQG Features

Supplied in the QSOP package
Adopting a supply type of Single
Power supplies of 5V
Operating with the supply voltage of 5V

74FCT257DTQG Applications

There are a lot of Integrated Device Technology (IDT)
74FCT257DTQG Signal Switches / Multiplexers / Decoders applications.

Transmission from the computer system of a satellite
Time division multiplexing system
Frequency multiplexing system
A/D converters
D/A converters
Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
