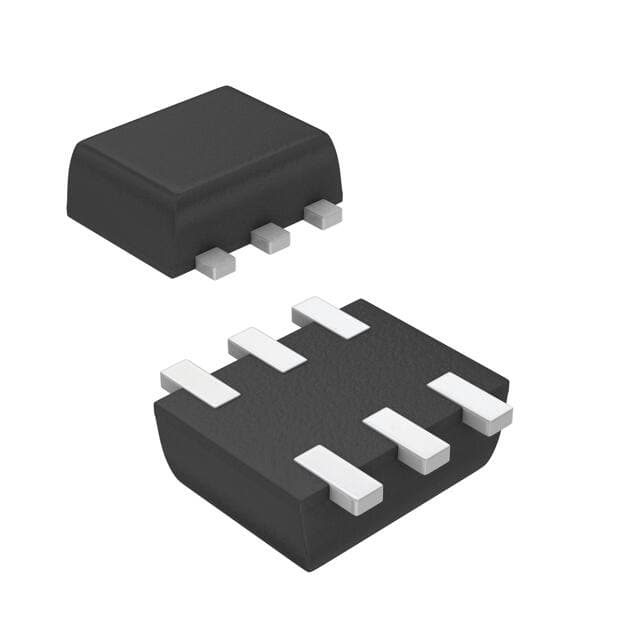

DIODES 74LVC1T45Z6-7

Manufacturer No:

74LVC1T45Z6-7

Manufacturer:

DIODES

Package:

SOT-563, SOT-666

Description:

Surface Mount 6 pins Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level SOT-563, SOT-666 Active 19 Weeks Weeks 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC1T45Z6-7 information

DIODES 74LVC1T45Z6-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES 74LVC1T45Z6-7.

Type
Parameter

Factory Lead Time
19 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-563, SOT-666

Number of Pins
6

Weight
3.005049mg

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
74LVC

Published
2014

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Subcategory
Bus Driver/Transceivers

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Pin Count
6

Qualification Status
Not Qualified

Output Type
Tri-State, Non-Inverted

Power Supplies
3.3V

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.65V

Operating Supply Current
3?A

Number of Ports
2

Number of Bits
1

Family
LVC/LCX/Z

Output Characteristics
3-STATE

Output Polarity
TRUE

Logic IC Type
BUS TRANSCEIVER

Max I(ol)
0.024 A

High Level Output Current
-32mA

Channel Type
Bidirectional

Low Level Output Current
32mA

Control Type
COMMON CONTROL

Translator Type
Voltage Level

Voltage - VCCA
1.65V~5.5V

Voltage - VCCB
1.65V~5.5V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for DIODES 74LVC1T45Z6-7.

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

74LVC1T45Z6-7 Overview

Package SOT-563, SOT-666 includes it.This package has the format of Tape & Reel (TR).Level translators uses Tri-State, Non-Inverted as level translatorss output configuration.Level translators has the translator type Voltage Level.The electronic part is mounted in a way that corresponds to Surface Mount.Bidirectional is the type of channel for this electrical device.Operation is performed at -40°C~125°C TA.To achieve its exceptional flexibility, it relies on 1 circuits.To end a transmission line, there are 6 types of termination that can be used.A supply voltage of 3.3V is used to power the device.Pin count is 6.There is one device in the 74LVC series, and it belongs to that series.Designed with 6 pins, it is compatible with a wide range of devices.The design of this electronic part contains 1 bits.The supply voltage is limited to 5.5V.1.65V is its minimum supply voltage.In the VCCA supply rail, 1.65V~5.5V is configured.In the VCCB supply rail, 1.65V~5.5V is configured.The mount method is Surface Mount.As part of Bus Driver/Transceivers, it belongs.There is BUS TRANSCEIVER logic IC in it.2 terminations are possible, which each match the transmission line's characteristic impedance.Level translators is part of the family of electronic devices called LVC/LCX/Z.Powered by a 3.3V battery, it can run for an extended period of time.In view of its reliable performance, this device can be considered suitable for TAPE AND REEL.

74LVC1T45Z6-7 Features

SOT-563, SOT-666 package
1 circuits
6 pin count
74LVC series
6 pins
3.3V power supplies

74LVC1T45Z6-7 Applications

There are a lot of Diodes Incorporated
74LVC1T45Z6-7 voltage translators & level shifters applications.

PMBus
SMBus
SDIO
UART
I2C
Automotive
Personal computing
Automotive infotainment
Advanced Driver Assistance System (ADAS)
Telematics
