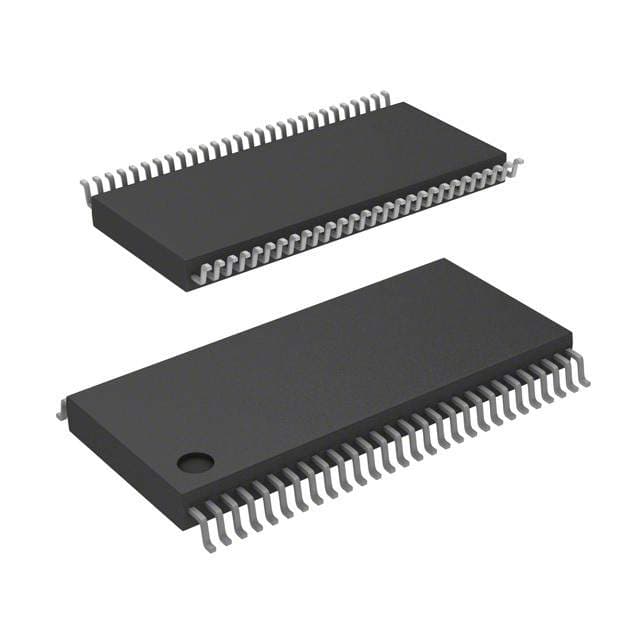

Renesas 74LVCH16646APAG

Manufacturer No:

74LVCH16646APAG

Manufacturer:

Renesas

Package:

TSSOP

Description:

DUAL Buffers 56 Pins 8 Bit per Element TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVCH16646APAG information

Renesas 74LVCH16646APAG technical specifications, attributes, parameters and parts with similar specifications to Renesas 74LVCH16646APAG.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
56

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Bus Driver/Transceivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
56

Qualification Status
Not Qualified

Number of Elements
2

Polarity
Non-Inverting

Temperature Grade
INDUSTRIAL

Number of Channels
16

Max Supply Voltage
3.6V

Min Supply Voltage
2.7V

Number of Ports
2

Propagation Delay
9.2 ns

Quiescent Current
10?A

Family
LVC/LCX/Z

Logic Function
Inverting, Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Logic IC Type
REGISTERED BUS TRANSCEIVER

Number of Bits per Element
8

Prop. Delay@Nom-Sup
5.7 ns

Trigger Type
POSITIVE EDGE

High Level Output Current
24mA

Low Level Output Current
24mA

Control Type
INDEPENDENT CONTROL

Translation
N/A

Length
14mm

Width
6.1mm

Download datasheets and manufacturer documentation for Renesas 74LVCH16646APAG.

Datasheets:

integrateddevicetechnology-74lvch16646apag-datasheets-4374.pdf

74LVCH16646APAG Overview

Using a neat TSSOP package, it works well. A total of 2 elements are used. A logic device such as this has 56 terminations with different functions. Supply voltage is 3.3V. Family LVC/LCX/Z includes the electronic part. There are 56 pins set with the electric component. Surface Mount applications are possible with digital buffer. The connector has 56 pins. A total of 2 ports are available on this bus transceiver. Each element in the network transceiver contains 8 bits. As a matter of fact, it is a type of Bus Driver/Transceivers. A quiescent electronic part uses 10?A. This electronic part should be operated safely and steadily in a circuit by applying 3.3V supply voltage. 16 channels ensure high-quality communication with this logic IC. As low as -40°C can be used to operate itTemperatures above 85°C are not recommended for it to operate. Low-level output mode produces 24mA. Electronic parts operating in high-level output mode may conduct 24mA of current. This buffer should be run at a minimum voltage of 2.7V if it is to function properly. With respect to its maximum supply voltage, it is rated at 3.6V. This bus transceiver is referred to as REGISTERED BUS TRANSCEIVER logic. Logic analyzer inputs can be monitored using the POSITIVE EDGE trigger, which can be configured to monitor specific patterns. A INDEPENDENT CONTROL-control voltage buffer starts up.

74LVCH16646APAG Features

Bus Driver/Transceivers
High Level Output: 24mA
Low Level Output: 24mA
REGISTERED BUS TRANSCEIVER Logic IC
Trigger Type: POSITIVE EDGE

74LVCH16646APAG Applications

There are a lot of Integrated Device Technology (IDT)
74LVCH16646APAG Buffers & Transceivers applications.

Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
